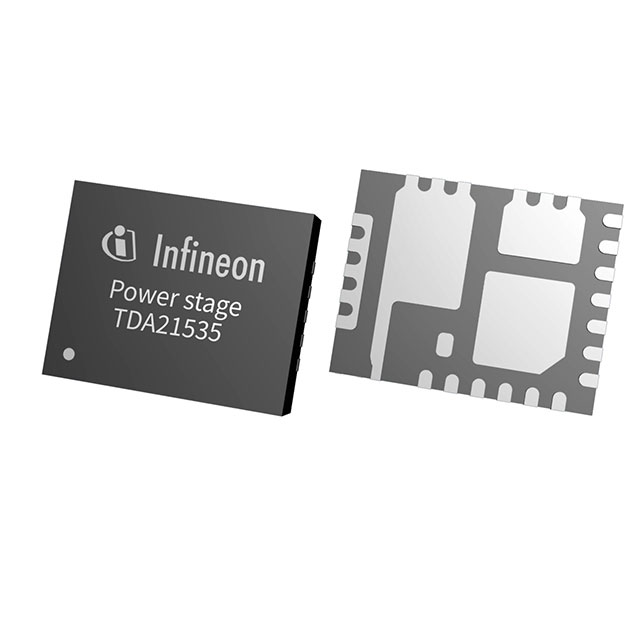

TDA21535AUMA1
ActiveInfineon Technologies
IFX POWERSTAGE/DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDA21535AUMA1
ActiveInfineon Technologies
IFX POWERSTAGE/DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDA21535AUMA1 |
|---|---|
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 25-PowerTFQFN |
| Supplier Device Package | PG-IQFN-25-1 |
| Voltage - Supply [Max] | 16 V |
| Voltage - Supply [Min] | 4.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.88 | |
| 10 | $ 3.49 | |||
| 25 | $ 3.30 | |||
| 100 | $ 2.86 | |||
| 250 | $ 2.71 | |||
| 500 | $ 2.43 | |||
| 1000 | $ 2.05 | |||
| 2500 | $ 1.95 | |||
| Digi-Reel® | 1 | $ 3.88 | ||
| 10 | $ 3.49 | |||
| 25 | $ 3.30 | |||
| 100 | $ 2.86 | |||
| 250 | $ 2.71 | |||
| 500 | $ 2.43 | |||
| 1000 | $ 2.05 | |||
| 2500 | $ 1.95 | |||
| Tape & Reel (TR) | 5000 | $ 1.87 | ||
TDA21535 Series
IFX POWERSTAGE/DRIVER
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|
Infineon Technologies TDA21535AUMA1 | Surface Mount | 125 ¯C | -40 °C | 4.25 V | 16 V | 25-PowerTFQFN | PG-IQFN-25-1 |
Description
General part information
TDA21535 Series
Driver PG-IQFN-25-1
