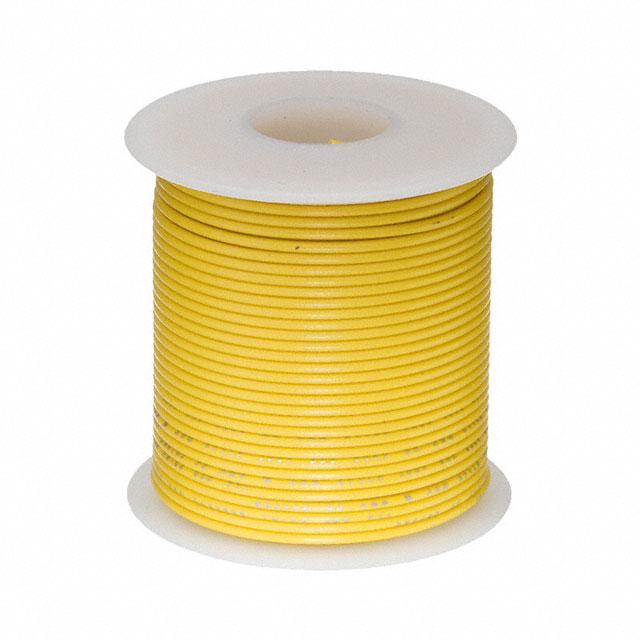

Specification	18STRYELGXL25

Cable Type	Hook-Up, Automotive
Conductor Material	Copper, Bare
Conductor Strand Count	19
Conductor Strand Diameter	30.5 mm
Features	Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant
Jacket (Insulation) Diameter	0.091 in
Jacket (Insulation) Material	Polyethylene (XLPE)
Jacket (Insulation) Thickness	0.019 in
Jacket Color	Yellow
Length	25 ft
Operating Temperature	125 °C
Voltage	60 V
Wire Gauge	18 AWG

18STR Series

...

Part	Features	Jacket Color	Operating Temperature	Jacket (Insulation) Diameter	Wire Gauge	Jacket (Insulation) Material	Voltage	Length	Cable Type	Conductor Strand Count	Conductor Strand Diameter	Jacket (Insulation) Thickness	Conductor Material	Conductor Strand Gauge
Remington Industries 18STRREDGXL1000	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Red	125 °C	0.091 in	18 AWG	Polyethylene (XLPE)	60 V	1000 ft	Automotive Hook-Up	19	30.5 mm	0.019 in	Bare Copper
Remington Industries 18STRORAGXL25	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Orange	125 °C	0.091 in	18 AWG	Polyethylene (XLPE)	60 V	25 ft	Automotive Hook-Up	19	30.5 mm	0.019 in	Bare Copper
Remington Industries 18STRYELUL1426500	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Yellow		0.092 in	18 AWG	Poly-Vinyl Chloride (PVC)	60 V	500 ft	Hook-Up	16			Copper Tinned	30
Remington Industries 18STRWHIGXL1000	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	White	125 °C	0.091 in	18 AWG	Polyethylene (XLPE)	60 V	1000 ft	Automotive Hook-Up	19	30.5 mm	0.019 in	Bare Copper
Remington Industries 18STRBLUGXL250	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Blue	125 °C	0.091 in	18 AWG	Polyethylene (XLPE)	60 V	250 ft	Automotive Hook-Up	19	30.5 mm	0.019 in	Bare Copper
Remington Industries 18STRBLUGXL500	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Blue	125 °C	0.091 in	18 AWG	Polyethylene (XLPE)	60 V	500 ft	Automotive Hook-Up	19	30.5 mm	0.019 in	Bare Copper
Remington Industries 18STRREDGXL100	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Red	125 °C	0.091 in	18 AWG	Polyethylene (XLPE)	60 V	100 ft	Automotive Hook-Up	19	30.5 mm	0.019 in	Bare Copper
Remington Industries 18STRBLUUL1426100	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Blue		0.092 in	18 AWG	Poly-Vinyl Chloride (PVC)	60 V	100 ft	Hook-Up	16			Copper Tinned	30
Remington Industries 18STRGRAGXL25	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Gray	125 °C	0.091 in	18 AWG	Polyethylene (XLPE)	60 V	25 ft	Automotive Hook-Up	19	30.5 mm	0.019 in	Bare Copper
Remington Industries 18STRWHIUL1426500	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	White		0.092 in	18 AWG	Poly-Vinyl Chloride (PVC)	60 V	500 ft	Hook-Up	16			Copper Tinned	30
