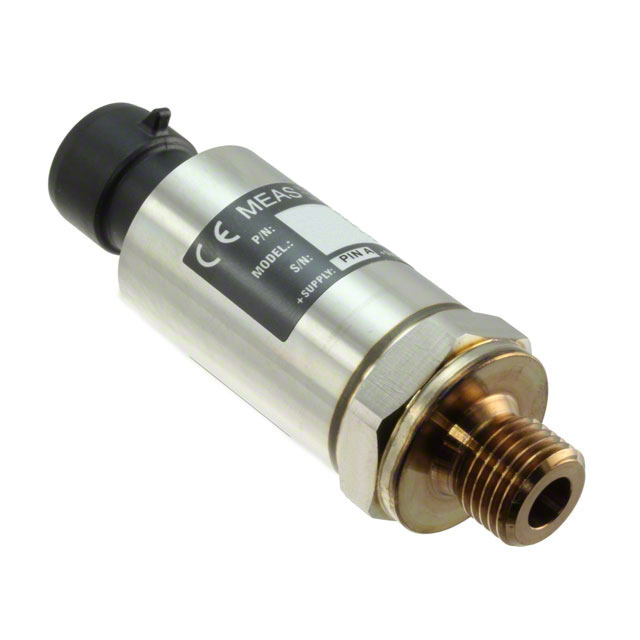

M5234-000004-05KPG
ActiveTE Connectivity Measurement Specialties
TRANSDUCER 0.5-4.5VDC 5000PSI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M5234-000004-05KPG
ActiveTE Connectivity Measurement Specialties
TRANSDUCER 0.5-4.5VDC 5000PSI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M5234-000004-05KPG |
|---|---|
| Accuracy | 0.25 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 10000 PSI |
| Maximum Pressure | 68947.57 kPa |
| Operating Pressure | 34473.79 kPa |
| Operating Pressure | 5000 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Output Type | Analog Voltage |
| Package / Case | Cylinder |
| Port Size | UNF, Male |
| Port Size | 11.11 mm, 0.4375 " |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Termination Style | Connector |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 144.68 | |
| 5 | $ 134.88 | |||
| 10 | $ 131.23 | |||
| 40 | $ 124.80 | |||
| 80 | $ 121.98 | |||
Description
General part information
M5234-000004-05KPG
TRANSDUCER 0.5-4.5VDC 5000PSI
