R5F572MDDGFP#10

Active

Renesas Electronics Corporation

HIGH PERFORMANCE 32-BIT MICROCONTROLLER FOR INDUSTRIAL NETWORK SOLUTIONS

Find alt

Alpha

R5F572MDDGFP#10

Active

Renesas Electronics Corporation

HIGH PERFORMANCE 32-BIT MICROCONTROLLER FOR INDUSTRIAL NETWORK SOLUTIONS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

RX700 Series

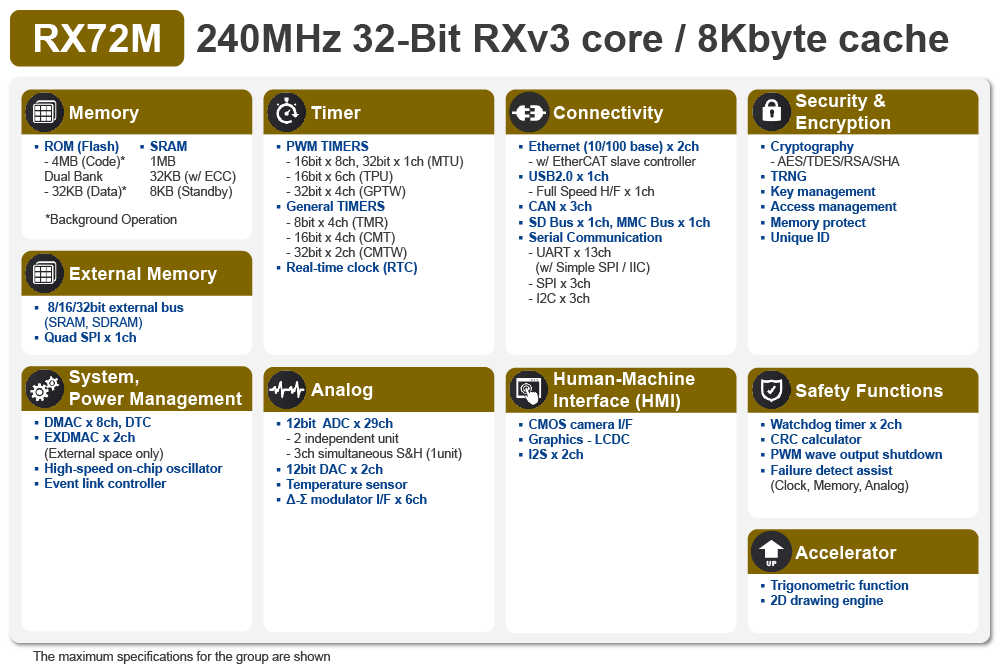

The RX72M Group microcontrollers are high performance products operating at 240 MHz with RX's 3rd generation CPU core "RXv3 core". Double-precision floating-point processing instructions can significantly improve processing power. It incorporates an EtherCAT slave controller and realizes a system configuration that requires a dedicated controller on a single chip, contributing to a reduction in the number of parts and space saving.

Technical Specifications

Parameters and characteristics for this part

Specification	R5F572MDDGFP#10

A/D Channels	29 count
A/D Resolution (bits)	12 bit
Connectivity	CANbus, EMI, I2C, QSPI, MMC, SPI, EBI, SSI, SCI, SD, USB OTG, Ethernet
Core Processor	RXv3
Core Size (Bit Width)	32 Bit
D/A Channels	2 count
D/A Resolution (bits)	12 bit
EEPROM Size (Depth)	32 K
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	72
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	100-LQFP
Package Length	14 mm
Package Name	100-LFQFP
Package Width	14 mm
Peripherals	WDT, DMA, LVD, PWM, POR
Program Memory Depth	2 M
Program Memory Size	2 MB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	1 M
RAM Size Width	8 bit
Speed	240 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	2.7 V

RX700 Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	D/A Resolution (bits)	D/A Channels	A/D Resolution (bits)	A/D Channels	Program Memory Depth	Program Memory Width	Program Memory Size	Program Memory Type	Mounting Type	Package Width	Package Name	Package Length	Peripherals	Core Processor	Number of I/O	RAM Size Width	RAM Size Depth	Oscillator Type	Core Size (Bit Width)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Package / Case	Connectivity	Speed	EEPROM Size (Width)	EEPROM Size (Depth)
Renesas Electronics Corporation R5F571MLCDFP	85 °C	-40 °C	12 bit	1 count	12 bit	22 count	4 M	8 bit	4 MB	FLASH	Surface Mount	14 mm	100-LFQFP	14 mm	DMA LVD POR PWM WDT	RXv2	78	8 bit	512 K	Internal	32 Bit	3.6 V	2.7 V	100-LQFP	CANbus EBI EMI Ethernet FIFO I2C MMC QSPI SCI SD SPI SSI USB OTG	240 MHz	8 bit	64 K
Renesas Electronics Corporation R5F571MLCGFC#H0	105 °C	-40 °C	12 bit	2 count	12 bit	29 count	4 M	8 bit	4 MB	FLASH	Surface Mount	24 mm	176-LFQFP	24 mm	DMA LVD POR PWM WDT	RXv2	127	8 bit	512 K	Internal	32 Bit	3.6 V	2.7 V	176-LQFP	CANbus EBI EMI Ethernet FIFO I2C MMC QSPI SCI SD SPI SSI UART USART USB OTG	240 MHz	8 bit	64 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RX72M Group Datasheet

Datasheet
