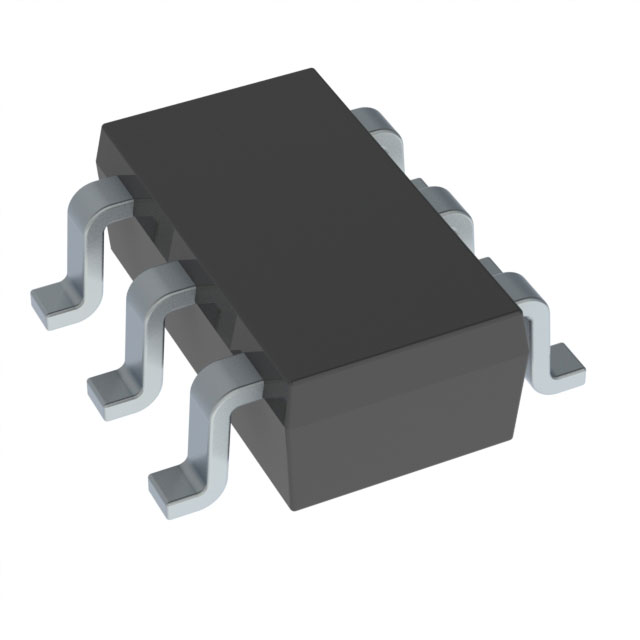

DG2521DV-T1-E3

Obsolete

Vishay General Semiconductor - Diodes Division

IC SWITCH SPDT X 1 800MOHM 6TSOP

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

IC SWITCH SPDT X 1 800MOHM 6TSOP

Technical Specifications

Parameters and characteristics for this part

Specification	DG2521DV-T1-E3

-3db Bandwidth	40 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	50 pF
Channel Capacitance (CS(off), CD(off)) [custom]	50 pF
Channel-to-Channel Matching (ΔRon) [Max]	60 mOhm
Charge Injection	224 pC
Crosstalk	-57 dB
Current - Leakage (IS(off)) (Max) [Max]	2 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max) [Max]	800 mOhm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	TSOT-23-6, SOT-23-6 Thin
Supplier Device Package	6-TSOP
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	35 ns
Switch Time (Ton, Toff) (Max) [custom]	25 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	1.8 V

Part	Number of Circuits	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Crosstalk	Supplier Device Package	Multiplexer/Demultiplexer Circuit	Charge Injection	-3db Bandwidth	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Channel-to-Channel Matching (ΔRon) [Max]	On-State Resistance (Max) [Max]	Current - Leakage (IS(off)) (Max) [Max]	Package / Case	Switch Circuit
Vishay General Semiconductor - Diodes Division DG2521DV-T1-E3	1	1.8 V	5.5 V	85 °C	-40 °C	Surface Mount	50 pF	50 pF	-57 dB	6-TSOP	2:1	224 pC	40 MHz	35 ns	25 ns	60 mOhm	800 mOhm	2 nA	SOT-23-6 Thin TSOT-23-6	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Circuit IC Switch 2:1 800mOhm 6-TSOP
