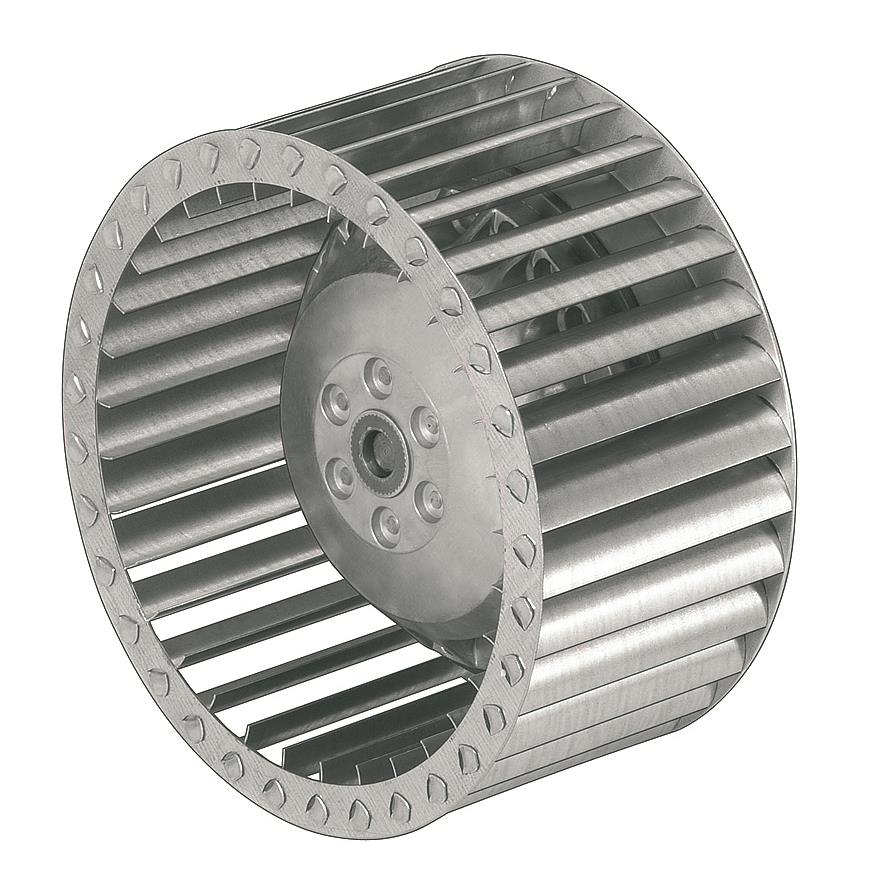

R2E220-AB06-67
LTBebm-papst Inc.
AC BACKWARD-CURVED MOTORIZED IMP
R2E220-AB06-67
LTBebm-papst Inc.
AC BACKWARD-CURVED MOTORIZED IMP
Description
General part information
R2E220-AB06-67
Fan Motorized Impellers 230VAC Round - 252mm Dia Ball 606.7 CFM (16.99mł/min) 4 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | R2E220-AB06-67 |
|---|---|
| Air Flow | 606.7 CFM |
| Approval Agency | UL, CE, CSA |
| Bearing Type | Ball |
| Current Rating | 0.51 A |
| Fan Type | Motorized Impellers |
| Features | Thermal Overload Protection (TOP), Capacitor |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Material - Blade | Polyamide, PA, Nylon |
| Operating Temperature (Max) | 113 °F |
| Operating Temperature (Min) | -13 °F |
| Power (Watts) | 115 W |
| RPM | 3050 RPM |
| Size / Dimension Diameter | 252 mm |
| Size / Dimension Shape | Round |
| Termination | 4 Wire Leads |
| Termination Leads Count | 4 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 230 VAC |
| Width | 71 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
