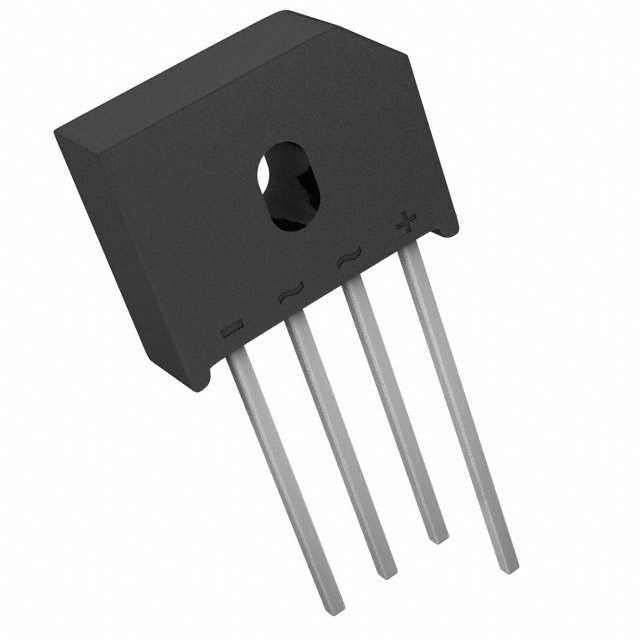

RS602

Obsolete

Diodes Inc

BRIDGE RECT 1PHASE 100V 6A RS-6

Search across all available documentation for this part.

Obsolete

Diodes Inc

BRIDGE RECT 1PHASE 100V 6A RS-6

Technical Specifications

Parameters and characteristics for this part

Specification	RS602

Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	RS-6, 4-SIP
Supplier Device Package	RS-6
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	100 V

Part	Technology	Mounting Type	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Reverse Leakage @ Vr	Package / Case	Voltage - Forward (Vf) (Max) @ If	Diode Type
Diodes Inc RS602	Standard	Through Hole	100 V	6 A	125 ¯C	-55 °C	RS-6	10 µA	4-SIP RS-6	1 V	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 100 V Through Hole RS-6
