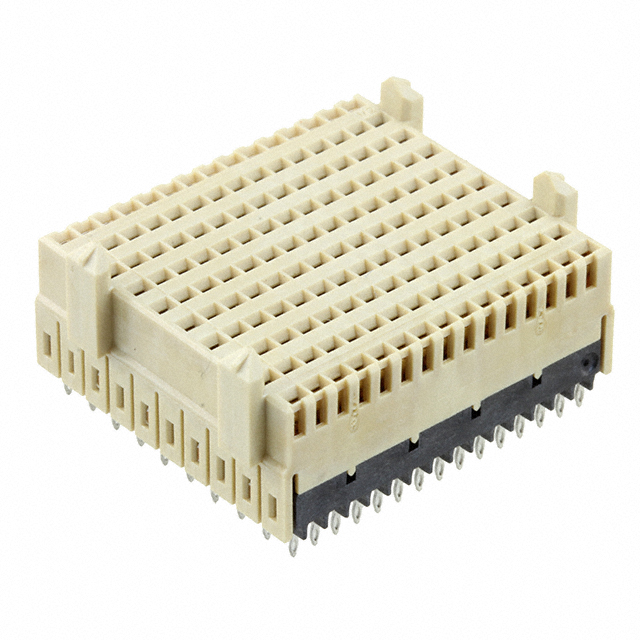

10016537-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 150POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 150POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10016537-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	150
Number of Positions Loaded	All
Number of Rows	15
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Termination	Number of Rows	Number of Positions Loaded	Color	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Columns	Number of Positions	Connector Usage	Mounting Type	Connector Type	Contact Finish	Connector Style
Amphenol ICC (FCI) 10016537-101LF	Press-Fit	15	All	Natural	0.055 in	1.4 mm	0.76 Ám	30 Áin	UL94 V-0	85 °C	-55 °C	10	150	Daughtercard	Through Hole	Receptacle Female Sockets	Gold	High Speed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 Connector Receptacle, Female Sockets Through Hole Natural High Speed
