9611 060100

Active

Belden Inc.

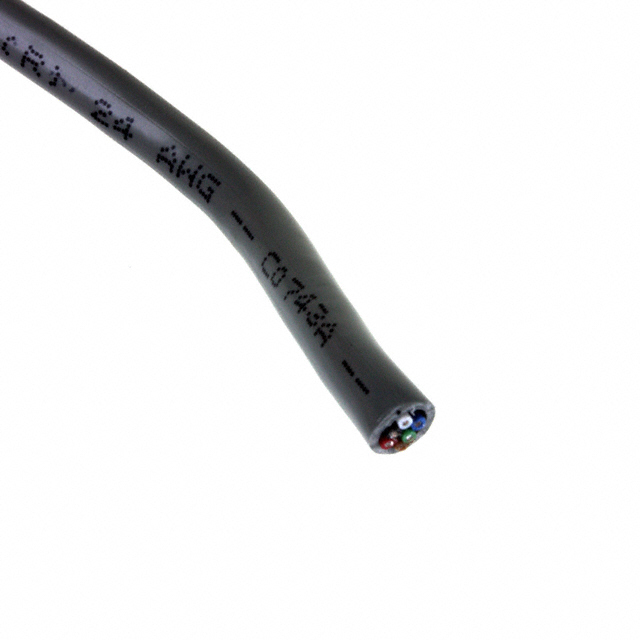

CABLE 6COND 24AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 24AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9611 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.225 "
Jacket (Insulation) Diameter [diameter]	5.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Material	Cable Type	Length [x]	Length [x]	Shield Type	Number of Conductors	Conductor Insulation	Conductor Material	Shield Coverage	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge
Belden Inc. 9611 060100	-30 ░C	80 C	Computer	Aluminum Copper Tinned	32 AWG	7	Chrome	Poly-Vinyl Chloride (PVC)	Multi-Conductor	30.5 m	100 ft	Braid Foil	6	Poly-Vinyl Chloride (PVC)	Copper Tinned	65 % 100 %	UL Style 2464	0.889 mm	0.035 in	0.225 "	5.72 mm	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
