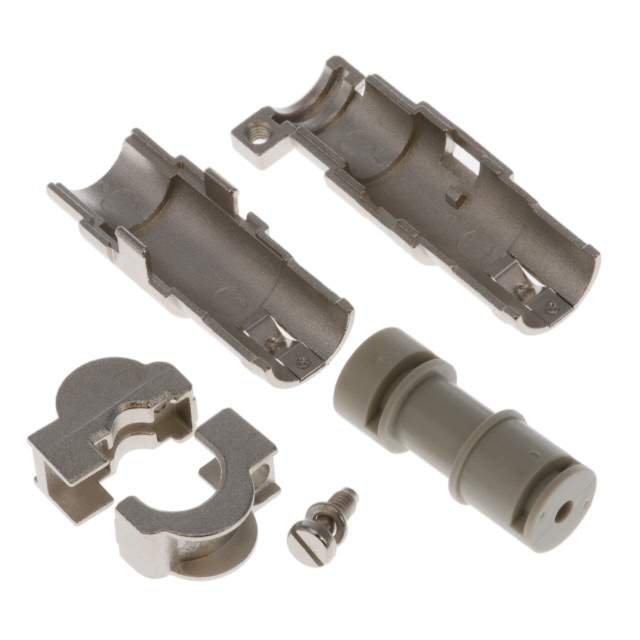

T2580012154-000

Active

TE Connectivity AMP Connectors

PIN-Q1-F

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

PIN-Q1-F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T2580012154-000	T258 Series

Connector Type	Insert without Contacts	Module without Contacts, Insert without Contacts
Contact Type	CEF, DEF	DDM, CDM, CEM, DEM, CEF, DEF
Current Rating (Amps)	16 A	10 - 16 A
Gender	Female	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	1	1 - 4
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Termination Style	Crimp	Crimp
Voltage Rating	50 V	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

T2580031154-000

Part	Contact Type	Number of Positions	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Gender	Material Flammability Rating	Current Rating (Amps)	Connector Type	Voltage Rating
TE Connectivity AMP Connectors T2580031154-000	CDM, DDM	4	Polycarbonate (PC)	85 °C	-40 °C	Crimp	Male	UL94 V-0	10 A	Module without Contacts	50 V
TE Connectivity AMP Connectors T2580011154-000	CEM, DEM	1	Polycarbonate (PC)	125 °C	-40 °C	Crimp	Male	UL94 V-0	16 A	Insert without Contacts	50 V
TE Connectivity AMP Connectors T2580012154-000	CEF, DEF	1	Polycarbonate (PC)	125 °C	-40 °C	Crimp	Female	UL94 V-0	16 A	Insert without Contacts	50 V
