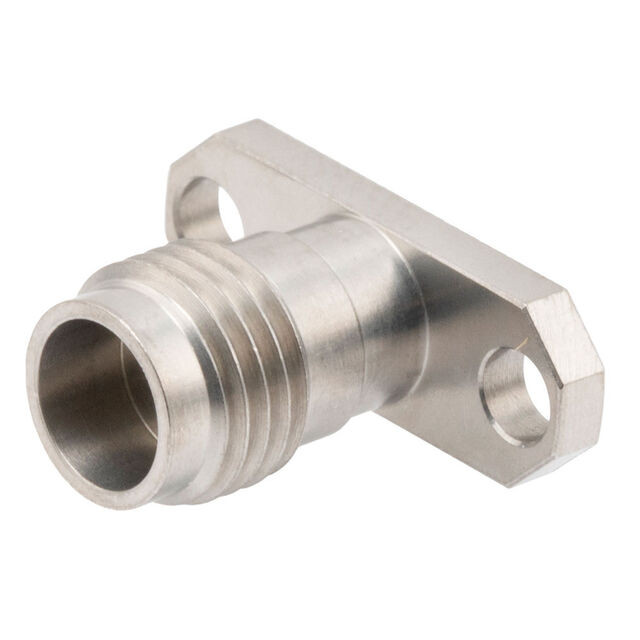

FMCN1809
ObsoleteFairview Microwave
CONN JACK FIELD REPLACEABLE 1.85
FMCN1809
ObsoleteFairview Microwave
CONN JACK FIELD REPLACEABLE 1.85
Description
General part information
FMCN1809
1.85mm Connector Receptacle, Female Socket 50 Ohms Panel Mount Compression
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1809 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 1.85 mm |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Frequency - Max | 67 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Screw |
