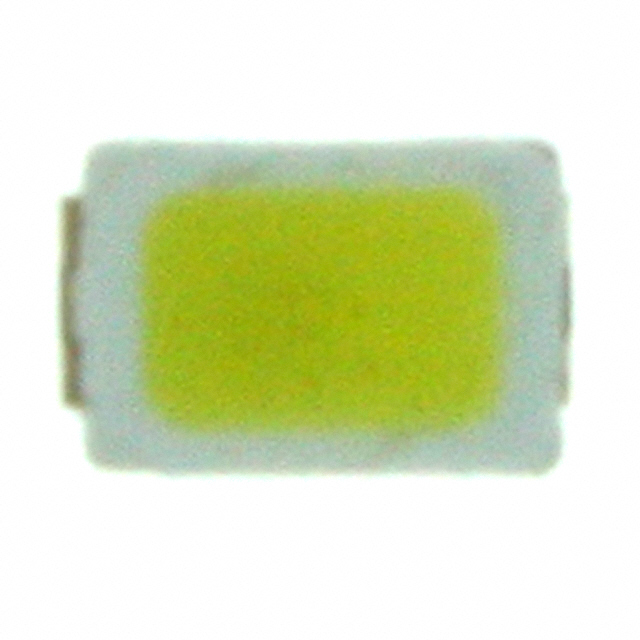

VLW1148LS-TR
ObsoleteStanley Electric Co
LED WHITE DIFFUSED 2PLCC SMD
VLW1148LS-TR
ObsoleteStanley Electric Co
LED WHITE DIFFUSED 2PLCC SMD
Description
General part information
VLW1148LS-TR
White LED Indication - Discrete 3.1V 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | VLW1148LS-TR |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) | 1.4 mm |
| Lens Color | Yellow |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 100 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Package Name | 2-PLCC |
| Size / Dimension Length | 2 mm |
| Size / Dimension Width | 1.4 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
