EPS090066-P1P

Obsolete

CUI Inc.

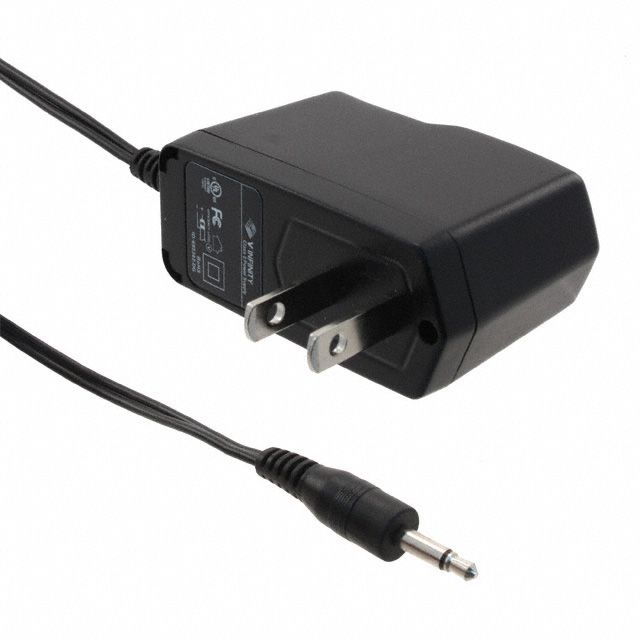

AC/DC WALL MOUNT ADAPTER 9V 5.9W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 5.9W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC WALL MOUNT ADAPTER 9V 5.9W

Part	Power (Watts)	Form	Current - Output (Max) [Max]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Output Connector [diameter]	Output Connector [x]	Output Connector	No Load Power Consumption	Applications	Input Type	Voltage - Output	Cord Length	Cord Length	Region Utilized	Polarization	Input Connector	Output Connector [custom]	Polarization [custom]	Polarization [custom]
CUI Inc. EPS090066-P5RP	5.9 W	Wall Mount (Class II)	660 mA	40 °C	100 VAC	132 VAC	Level V	cULus	1.06 in	1.65 "	26.8 mm	2.45 in	42 mm	62.3 mm	2.1 mm, 5.5 mm	12 mm	Barrel Plug R/A	300 mW	ITE (Commercial)	Fixed Blade	9 V	1.83 m	72 in	North America	Positive Center	NEMA 1-15P
CUI Inc. EPS090066-P6RP	6 W	Wall Mount (Class II)	660 mA	40 °C	100 VAC	132 VAC	Level V	cULus	1.06 in	1.65 "	26.8 mm	2.45 in	42 mm	62.3 mm	2.5 mm, 5.5 mm		Barrel Plug R/A	300 mW	ITE (Commercial)	Fixed Blade	9 V	1.83 m	72 in	North America	Positive Center	NEMA 1-15P	12 mm
CUI Inc. EPS090066-P1P	5.9 W	Wall Mount (Class II)	660 mA	40 °C	100 VAC	132 VAC	Level V	cULus	1.06 in	1.65 "	26.8 mm	2.45 in	42 mm	62.3 mm	3.5 mm	14 mm	Phono Plug	300 mW	ITE (Commercial)	Fixed Blade	9 V	1.83 m	72 in	North America		NEMA 1-15P		Negative	Positive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9V 5.9 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
