LCS-30
ActiveCurtis Industries

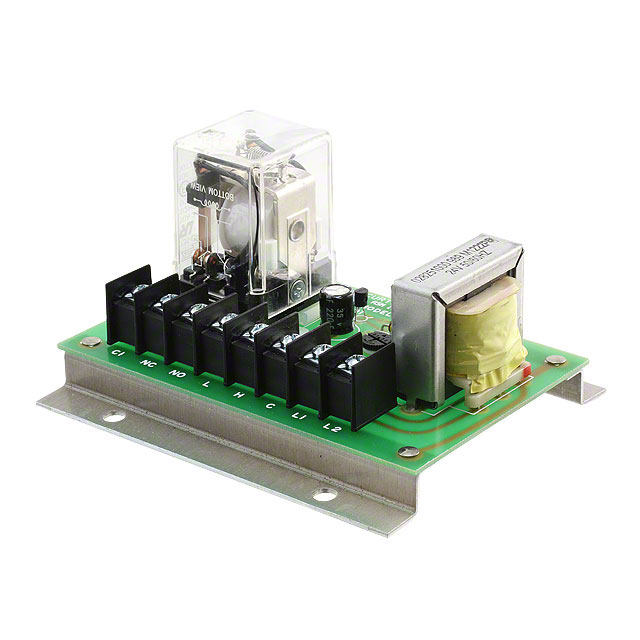

CONTROL LIQUID LEV 24VAC CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCS-30
ActiveCurtis Industries
CONTROL LIQUID LEV 24VAC CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LCS-30 | LCS Series |
|---|---|---|
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating @ Voltage [x] | 10 A, 120 VAC | 10 - 120 A |
| Features | Adjustable Sensitivity | Adjustable Sensitivity, NEMA 4 Rated Enclosure Included, Auxiliary Contactor |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Sensitivity [Max] | 100 kOhm | 100 kOhm |
| Sensitivity [Min] | 0 | 0 |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | High/Low Level | High/Low Level |
| Voltage - Supply | 24 VAC | 24 - 240 VAC |
LCS Series
CONTROL LIQUID LEV 24VAC CHASSIS
| Part | Contact Rating @ Voltage [x] | Mounting Type | Voltage - Supply | Features | Termination Style | Type | Sensitivity [Max] | Sensitivity [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries LCS-30 | 10 A, 120 VAC | Chassis Mount | 24 VAC | Adjustable Sensitivity | Screw Terminal | High/Low Level | 100 kOhm | 0 | 60 °C | 0 °C | SPDT (1 Form C) |
Curtis Industries LCS-20-N4 | 10 A, 120 VAC | Chassis Mount | 240 VAC | Adjustable Sensitivity, NEMA 4 Rated Enclosure Included | Screw Terminal | High/Low Level | 100 kOhm | 0 | 60 °C | 0 °C | SPDT (1 Form C) |
Curtis Industries LCS-10-C-N4 | 10 A, 120 VAC | Chassis Mount | 120 VAC | Adjustable Sensitivity, Auxiliary Contactor, NEMA 4 Rated Enclosure Included | Screw Terminal | High/Low Level | 100 kOhm | 0 | 60 °C | 0 °C | SPDT (1 Form C) |
Curtis Industries LCS-10-N4 | 10 A, 120 VAC | Chassis Mount | 120 VAC | Adjustable Sensitivity, NEMA 4 Rated Enclosure Included | Screw Terminal | High/Low Level | 100 kOhm | 0 | 60 °C | 0 °C | SPDT (1 Form C) |
Curtis Industries LCS-20 | 10 A, 120 VAC | Chassis Mount | 240 VAC | Adjustable Sensitivity | Screw Terminal | High/Low Level | 100 kOhm | 0 | 60 °C | 0 °C | SPDT (1 Form C) |
Curtis Industries LCS-10-C | 10 A, 120 VAC | Chassis Mount | 120 VAC | Adjustable Sensitivity, Auxiliary Contactor | Screw Terminal | High/Low Level | 100 kOhm | 0 | 60 °C | 0 °C | SPDT (1 Form C) |
Curtis Industries LCS-20-C | 10 A, 120 VAC | Chassis Mount | 240 VAC | Adjustable Sensitivity, Auxiliary Contactor | Screw Terminal | High/Low Level | 100 kOhm | 0 | 60 °C | 0 °C | SPDT (1 Form C) |
Curtis Industries LCS-30-C | 10 A, 120 VAC | Chassis Mount | 24 VAC | Adjustable Sensitivity, Auxiliary Contactor | Screw Terminal | High/Low Level | 100 kOhm | 0 | 60 °C | 0 °C | SPDT (1 Form C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCS Series
Liquid Level Controller High/Low Level SPDT (1 Form C) 24VAC Chassis Mount
