Description
General part information

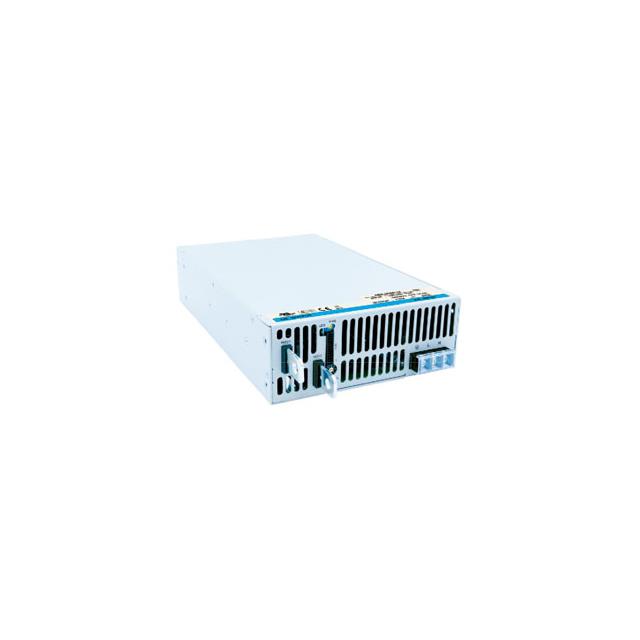

AEK-3000-48
Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AEK-3000-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, TUV, CE |
| Current - Output 1 | 62.5 A |
| Efficiency | 92 % |
| Features | Remote On/Off, Remote Sense, Load Sharing, DC Input Capable, Standby Input, I2C Interface, PFC, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 3000 W |
| Size / Dimension Height | 2.5 in |
| Size / Dimension Length | 11.02 in |
| Size / Dimension Width | 6.69 in |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48 V |
