1.10119.6170000

Obsolete

RAFI USA

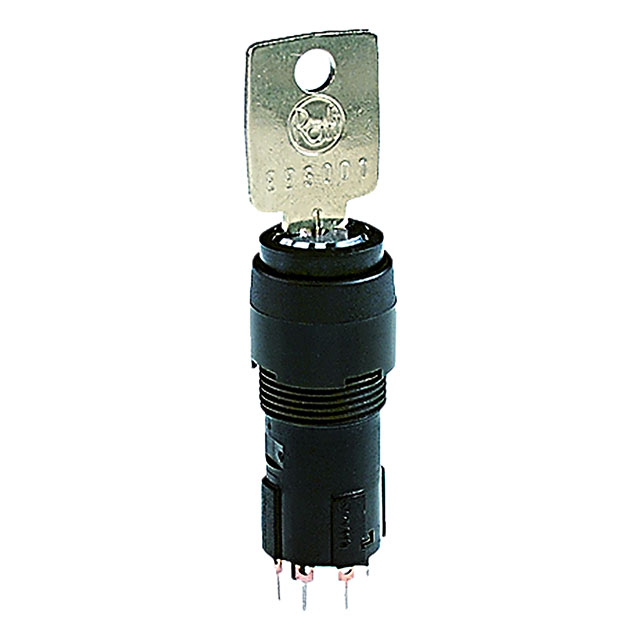

SWITCH KEYLK 4POS SP3T 100MA 35V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH KEYLK 4POS SP3T 100MA 35V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.10119.6170000	1.10.119 Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	90 °
Circuit	SP3T	SP3T
Contact Finish	Gold Alloy	Gold Alloy
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	100 mA	100 mA
Depth Behind Flange	39.5 mm	39.5 mm
Electrical Life	50000 Cycles	50000 Cycles
Features	Priority Lock Position Keys	Priority Lock Position Keys
Key Removable Positions	Center	Center
Number of Positions	4	4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Switch Function	Off-On-On-On	Off-On-On-On
Termination Style	Solder Lug	Solder Lug
Voltage Rating - DC	35 V	35 V

SWITCH KEYLK 4POS SP3T 100MA 35V

Part	Electrical Life	Circuit	Contact Timing	Actuator Type	Current Rating (Amps)	Angle of Throw	Features	Depth Behind Flange	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Key Removable Positions	Panel Cutout Dimensions [diameter]	Switch Function	Contact Finish	Termination Style	Number of Positions
RAFI USA 1.10119.6170000	50000 Cycles	SP3T	Not Specified	Flat Key	100 mA	90 °	Priority Lock Position Keys	39.5 mm	35 V	70 °C	-25 °C	Center	16.2 mm	Off-On-On-On	Gold Alloy	Solder Lug	4
RAFI USA 1.10119.1170000	50000 Cycles	SP3T	Not Specified	Flat Key	100 mA	90 °	Priority Lock Position Keys	39.5 mm	35 V	70 °C	-25 °C	Center	16.2 mm	Off-On-On-On	Gold Alloy	Solder Lug	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 144.02

General part information

Keylock Switch 4 Position SP3T 100mA (AC/DC) 35 VAC 35 VDC Panel Mount
