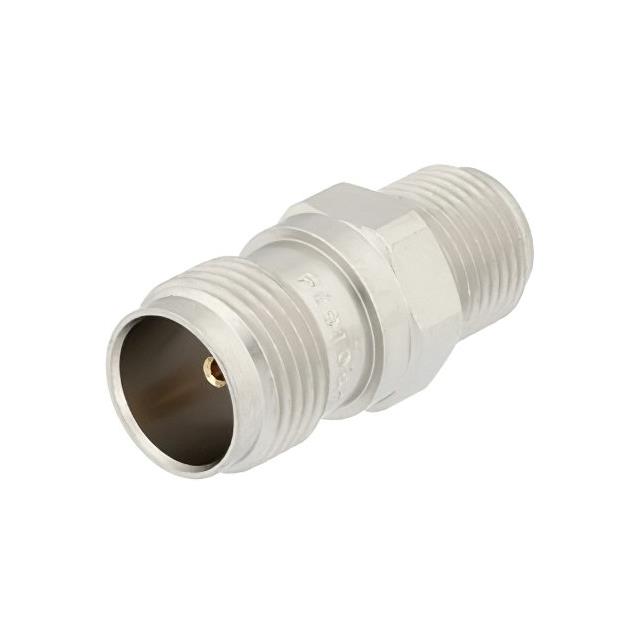

PE91082
ObsoletePasternack
75 OHM TNC FEMALE TO 75 OHM F FE
PE91082
ObsoletePasternack
75 OHM TNC FEMALE TO 75 OHM F FE
Description
General part information
PE91082
Adapter Coaxial Connector F Jack, Female Socket To TNC Jack, Female Socket 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE91082 |
|---|---|
| Adapter Series | F to TNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, F Jack |
| Convert To (Adapter End) | TNC Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 2 GHz |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
