DMN1002UCA6-7
ActiveDiodes Inc
12V N-CHANNEL ENHANCEMENT MODE MOSFET
Deep-Dive with AI
Search across all available documentation for this part.
DMN1002UCA6-7
ActiveDiodes Inc
12V N-CHANNEL ENHANCEMENT MODE MOSFET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN1002UCA6-7 |
|---|---|
| Configuration | 2 N-Channel (Dual) Common Drain |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 68.6 nC |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-SMD, No Lead |
| Power - Max [Max] | 1.1 W |

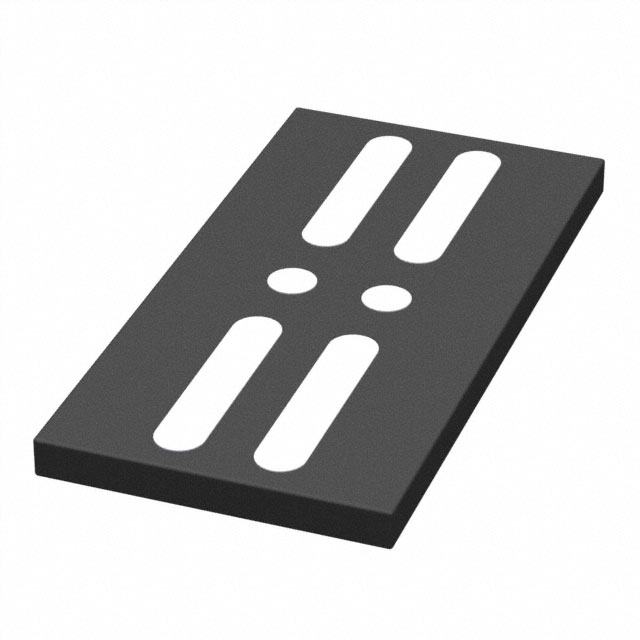

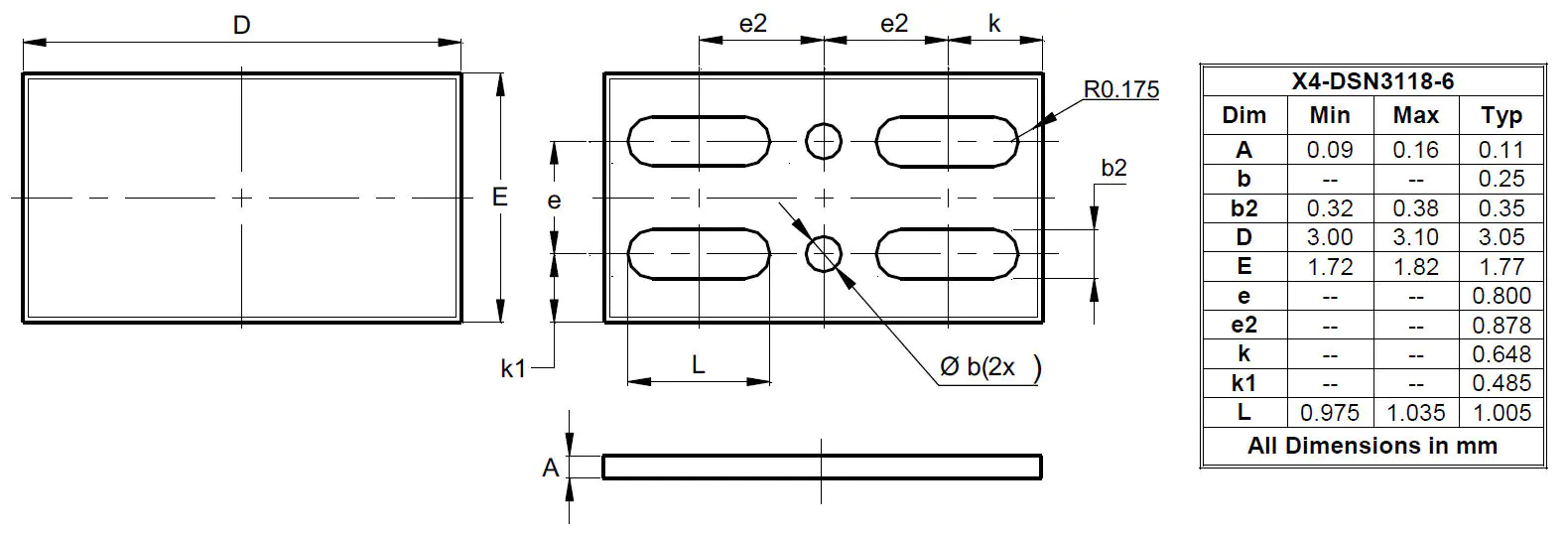

| Supplier Device Package | X4-DSN3118-6 |
| Technology | MOSFET (Metal Oxide) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.40 | |
| Digi-Reel® | 1 | $ 1.40 | ||
| Tape & Reel (TR) | 3000 | $ 0.35 | ||
| 6000 | $ 0.33 | |||
| 9000 | $ 0.32 | |||
Description
General part information
DMN1002UCA6 Series
This new generation MOSFET is designed to minimize the on-state resistance (RSS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
