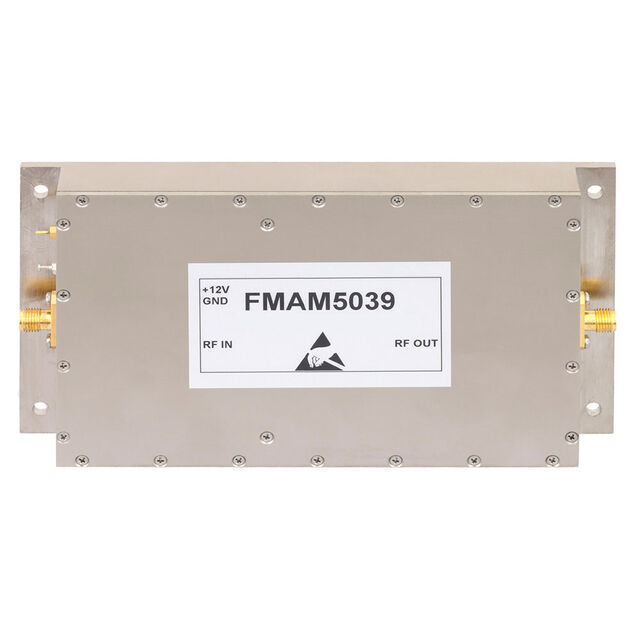

FMAM5039
ActiveFairview Microwave
POWER AMP 860MHZ-0.96GHZ P1DB SM
FMAM5039
ActiveFairview Microwave
POWER AMP 860MHZ-0.96GHZ P1DB SM
Description
General part information
FMAM5039
RF Amplifier IC General Purpose 860MHz ~ 960MHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM5039 |
|---|---|
| Current - Supply | 6.5 A |
| Frequency (Max) | 960 MHz |
| Frequency (Min) | 860 MHz |
| Gain | 45 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 3.5 dB |
| P1dB | 44 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 13 V |
| Voltage - Supply (Minimum) | 11.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
