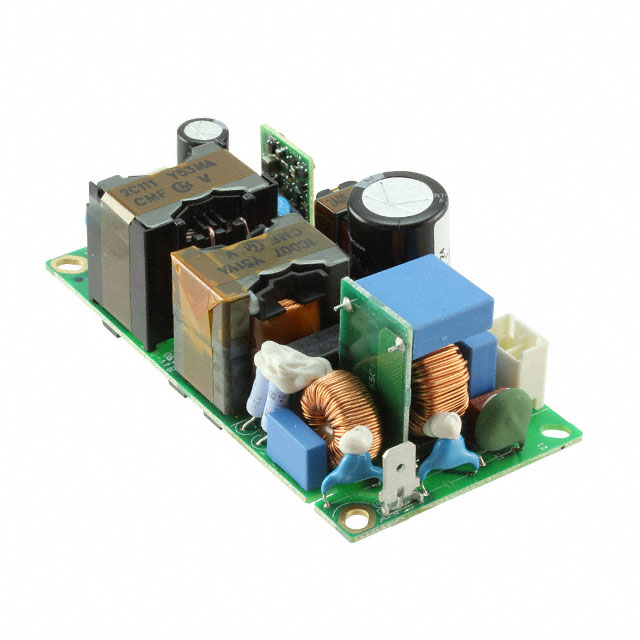

MVAD160-125

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 110W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 110W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MVAD160-125	MVAD160 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	CB, CE, cURus, VDE	CB, CE, cURus, VDE
Current - Output 1	13.34 A	6.67 - 13.34 A
Efficiency	92 %	92 - 93 %
Features	Remote Sense, Standby Output, Universal Input, Remote On/Off, DC Input Capable	Remote Sense, Standby Output, Universal Input, Remote On/Off, DC Input Capable
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	160 W, 110 W	110 - 160 W
Size / Dimension [x]	4 in	4 in
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	38.1 mm	38.1 mm
Size / Dimension [z]	1.5 "	1.5 "
Type	Open Frame	Open Frame
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	12 V	12 - 24 V

AC/DC CONVERTER 12V 110W

Part	Current - Output 1	Efficiency	Mounting Type	Number of Outputs	Applications	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Minimum Load Required	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Type	Features	Voltage - Isolation
Murata Power Solutions Inc. MVAD160-125	13.34 A	92 %	Chassis Mount	1	ITE (Commercial), Medical	CB, CE, cURus, VDE	4 in	38.1 mm	1.5 "	2 in	101.6 mm	50.8 mm		12 V	85 °C	-40 °C	110 W, 160 W	Open Frame	DC Input Capable, Remote On/Off, Remote Sense, Standby Output, Universal Input	4000 V
Murata Power Solutions Inc. MVAD160-24	6.67 A	93 %	Chassis Mount	1	ITE (Commercial), Medical	CB, CE, cURus, VDE	4 in	38.1 mm	1.5 "	2 in	101.6 mm	50.8 mm		24 V	85 °C	-40 °C	110 W, 160 W	Open Frame	DC Input Capable, Universal Input	4000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
