Description
General part information

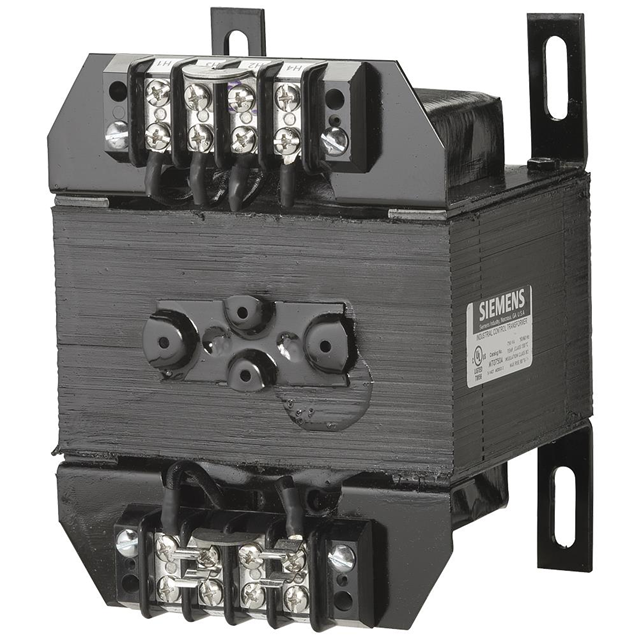

MT0750L
PWR XFMR 750VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | MT0750L |
|---|---|
| Center Tap | No |
| Height - Seated (Max) | 160.78 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 750 VA |
| Size / Dimension Length | 150.37 mm |
| Size / Dimension Width | 177.8 mm |
| Termination Style | Terminal Block |
| Voltage - Primary | 240V, 550V, 400V, 600V, 208V, 230V, 416V, 500V, 575V, 460V, 480V, 380V, 220V, 440V |
| Voltage - Secondary (Full Load) | 91V, 125V, 110V, 120V, 99V, 130V, 100V, 115V, 95V, 85V |
| Voltage - Secondary (Full Load) (Option 1) | 130 V |
| Voltage - Secondary (Full Load) (Option 10) | 91 V |
| Voltage - Secondary (Full Load) (Option 11) | 85 V |
| Voltage - Secondary (Full Load) (Option 2) | 125 V |
| Voltage - Secondary (Full Load) (Option 3) | 120 V |
| Voltage - Secondary (Full Load) (Option 4) | 120 V |
| Voltage - Secondary (Full Load) (Option 5) | 115 V |
| Voltage - Secondary (Full Load) (Option 6) | 110 V |
| Voltage - Secondary (Full Load) (Option 7) | 100 V |
| Voltage - Secondary (Full Load) (Option 8) | 99 V |
| Voltage - Secondary (Full Load) (Option 9) | 95 V |
