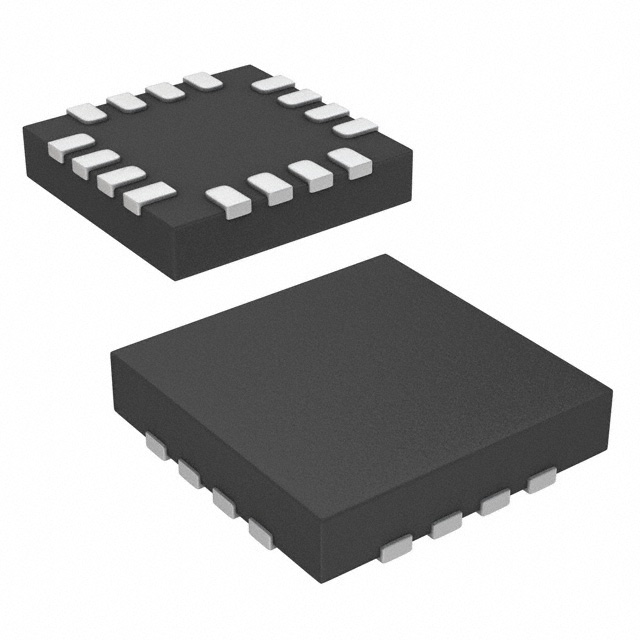

MIC2800-D24MYML-TR
ActiveMicrochip Technology
DC-DC + 2 LINEAR REGULATORS WITH LOWQ MODE & POR 16 VQFN 3X3X0.90MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
MIC2800-D24MYML-TR
ActiveMicrochip Technology
DC-DC + 2 LINEAR REGULATORS WITH LOWQ MODE & POR 16 VQFN 3X3X0.90MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MIC2800-D24MYML-TR | MIC2800 Series |
|---|---|---|
| Frequency - Switching | 2 MHz | 2 MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 3 | 3 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 16-VFQFN | 16-VFQFN |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) |
| Topology | Linear (LDO) (2), Step-Down (Buck) (1) | Linear (LDO) (2), Step-Down (Buck) (1) |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
| Voltage/Current - Output 1 | - | 1.8 - 600 mA |
| Voltage/Current - Output 1 | - | Adj |
| Voltage/Current - Output 1 [custom] | 600 mA | 600 mA |
| Voltage/Current - Output 1 [custom] | 1.87 V | 1.87 V |
| Voltage/Current - Output 2 | 300 mA, 1.2 V | 1.05 - 300 mA |
| Voltage/Current - Output 3 | - | 1.5 - 300 V |
| w/LED Driver | False | False |
| w/Sequencer | False | False |
| w/Supervisor | False | False |
MIC2800 Series
DC-DC + 2 LINEAR REGULATORS WITH LOWQ MODE & POR 16 VQFN 3X3X0.90MM T/R ROHS COMPLIANT: YES
| Part | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | w/Sequencer | w/LED Driver | Voltage/Current - Output 2 | Topology | Frequency - Switching | Voltage/Current - Output 1 [custom] | Voltage/Current - Output 1 [custom] | Number of Outputs | w/Supervisor | Voltage/Current - Output 3 | Voltage/Current - Output 1 | Voltage/Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MIC2800-D24MYML-TR | 16-QFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 125 °C | -40 °C | 16-VFQFN | 1.2 V, 300 mA | Linear (LDO) (2), Step-Down (Buck) (1) | 2 MHz | 600 mA | 1.87 V | 3 | ||||||
Microchip Technology MIC2800-G4SYML-TR | 16-QFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 125 °C | -40 °C | 16-VFQFN | 1.2 V, 300 mA | Linear (LDO) (2), Step-Down (Buck) (1) | 2 MHz | 3 | 3.3 V, 300 mA | 1.8 V, 600 mA | ||||||
Microchip Technology MIC2800-A4SYML-TR | 16-QFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 125 °C | -40 °C | 16-VFQFN | 1.2 V, 300 mA | Linear (LDO) (2), Step-Down (Buck) (1) | 2 MHz | 3 | 3.3 V, 300 mA | 600 mA | Adj | |||||
Microchip Technology MIC2800-D2FMYML-TR | 16-QFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 125 °C | -40 °C | 16-VFQFN | 1.2 V, 300 mA | Linear (LDO) (2), Step-Down (Buck) (1) | 2 MHz | 600 mA | 1.87 V | 3 | 1.5 V, 300 mA | |||||
Microchip Technology MIC2800-G8SYML-TR | 16-QFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 125 °C | -40 °C | 16-VFQFN | Linear (LDO) (2), Step-Down (Buck) (1) | 2 MHz | 3 | 3.3 V, 300 mA | 1.8 V, 600 mA | |||||||
Microchip Technology MIC2800-G2SYML-TR | 16-QFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 125 °C | -40 °C | 16-VFQFN | 1.05 V, 300 mA | Linear (LDO) (2), Step-Down (Buck) (1) | 2 MHz | 3 | 3.3 V, 300 mA | 1.8 V, 600 mA | ||||||
Microchip Technology MIC2800-G1JSYML-TR | 16-QFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 125 °C | -40 °C | 16-VFQFN | 1.25 V, 300 mA | Linear (LDO) (2), Step-Down (Buck) (1) | 2 MHz | 3 | 3.3 V, 300 mA | 1.8 V, 600 mA | ||||||
Microchip Technology MIC2800-G4JYML-TR | 16-QFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 125 °C | -40 °C | 16-VFQFN | 1.2 V, 300 mA | Linear (LDO) (2), Step-Down (Buck) (1) | 2 MHz | 3 | 2.5 V, 300 mA | 1.8 V, 600 mA | ||||||
Microchip Technology MIC2800-G4KYML-TR | 16-QFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 125 °C | -40 °C | 16-VFQFN | 1.2 V, 300 mA | Linear (LDO) (2), Step-Down (Buck) (1) | 2 MHz | 3 | 2.6 V, 300 mA | 1.8 V, 600 mA | ||||||
Microchip Technology MIC2800-GFSYML-TR | 16-QFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 125 °C | -40 °C | 16-VFQFN | 1.5 V, 300 mA | Linear (LDO) (2), Step-Down (Buck) (1) | 2 MHz | 3 | 3.3 V, 300 mA | 1.8 V, 600 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MIC2800 Series
PMIC - Voltage Regulators - Linear Switching 3 Output Step-Down (Buck) (1), Linear (LDO) (2) 2MHz 16-QFN (3x3)
