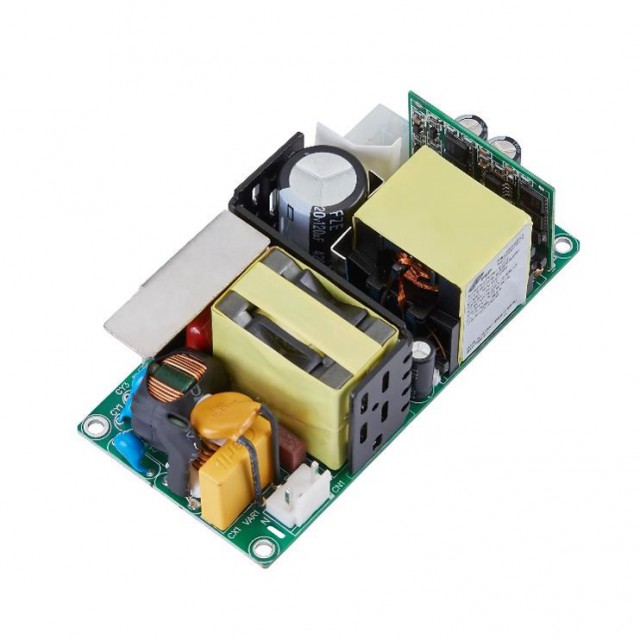

FSP250-H24-A24
ActiveFSP Technology Inc.
AC/DC CONVERTER 24V 150W
FSP250-H24-A24
ActiveFSP Technology Inc.
AC/DC CONVERTER 24V 150W
Description
General part information
FSP250-H24-A24
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | FSP250-H24-A24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output 1 | 10.42 A |
| Efficiency | 91 % |
| Features | Universal Input, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 150 W, 250 W |
| Size / Dimension Height | 1.28 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2 in |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
