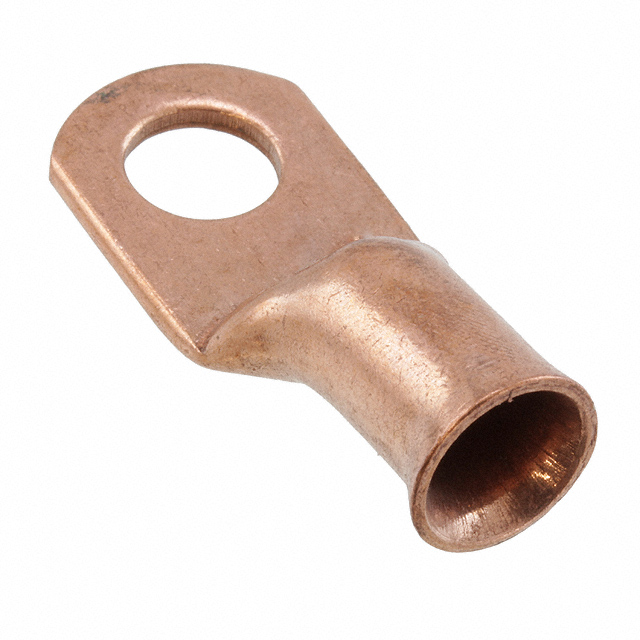

Specification	0192210461

Contact Material	Copper
Features	Heavy Duty
Insulation	Non-Insulated
Length - Overall	1.531 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.3125 in
Stud/Tab Size	16 Stud, 5 Stud
Stud/Tab Size (Type)	Stud
Terminal Type	Tubular (Battery Lugs), Flat Sided
Termination	Crimp
Thickness	0.08 in
Width - Outer Edges	0.625 in
Wire Gauge	4 AWG

019221 Series

...

Part	Width - Outer Edges	Stud/Tab Size	Terminal Type	Insulation	Wire Gauge	Contact Material	Contact Finish	Thickness	Features	Termination	Length - Overall	Mounting Type	Stud/Tab Size	Stud/Tab Size (Type)
Molex 0192210420	0.656 in	0.25 Stud	Flat Sided Tubular (Battery Lugs)	Non-Insulated	1 AWG	Copper	Tin	0.1 in	Heavy Duty	Crimp	1.718 in	Free Hanging (In-Line)
Molex 0192210410	0.594 in	0.375 in	Flat Sided Tubular (Battery Lugs)	Non-Insulated	8 AWG	Copper		0.07 in	Heavy Duty	Crimp	1.313 in	Free Hanging (In-Line)	3 Stud 8 Stud
Molex 0192210791	0.625 in	0.375 in	Flat Sided Tubular (Battery Lugs)	Non-Insulated	4 AWG	Copper		0.08 in	Heavy Duty	Crimp	1.531 in	Free Hanging (In-Line)	3 Stud 8 Stud
Molex 0192210237	0.656 in	0.3125 in	Flat Sided Tubular (Battery Lugs)	Non-Insulated	1 AWG	Copper	Tin	0.1 in	Heavy Duty	Crimp	1.718 in	Free Hanging (In-Line)	16 Stud 5 Stud	Stud
Molex 0192210778	0.728 in	0.5 Stud	Flat Sided Tubular (Battery Lugs)	Non-Insulated	1/0 AWG	Copper		0.11 in	Heavy Duty	Crimp	1.844 in	Free Hanging (In-Line)
Molex 0192210228	0.594 in	0.3125 in	Flat Sided Tubular (Battery Lugs)	Non-Insulated	6 AWG	Copper	Tin	0.08 in	Heavy Duty	Crimp	1.406 in	Free Hanging (In-Line)	16 Stud 5 Stud	Stud
Molex 0192210245	0.813 in	0.5 Stud	Flat Sided Tubular (Battery Lugs)	Non-Insulated	2/0 AWG	Copper	Tin	0.11 in	Heavy Duty	Crimp	2.062 in	Free Hanging (In-Line)
Molex 0192210408	0.438 in	10 Stud	Flat Sided Tubular (Battery Lugs)	Non-Insulated	8 AWG	Copper		0.07 in	Heavy Duty	Crimp	1.187 in	Free Hanging (In-Line)
Molex 0192210242	0.718 in	0.5 Stud	Flat Sided Tubular (Battery Lugs)	Non-Insulated	1/0 AWG	Copper	Tin	0.11 in	Heavy Duty	Crimp	1.844 in	Free Hanging (In-Line)
Molex 0192210759	0.728 in	0.3125 in	Flat Sided Tubular (Battery Lugs)	Non-Insulated	1/0 AWG	Copper	Tin	0.11 in	Heavy Duty	Crimp	1.844 in	Free Hanging (In-Line)	16 Stud 5 Stud	Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0192210461 | Datasheet
