T18104KT10

T18104KT10

Active
Vishay Dale

TRIMMER 100K OHM 0.75W PC PIN

Find alt
T18104KT10

T18104KT10

Active
Vishay Dale

TRIMMER 100K OHM 0.75W PC PIN

Find alt

Description

General part information

T18104KT10

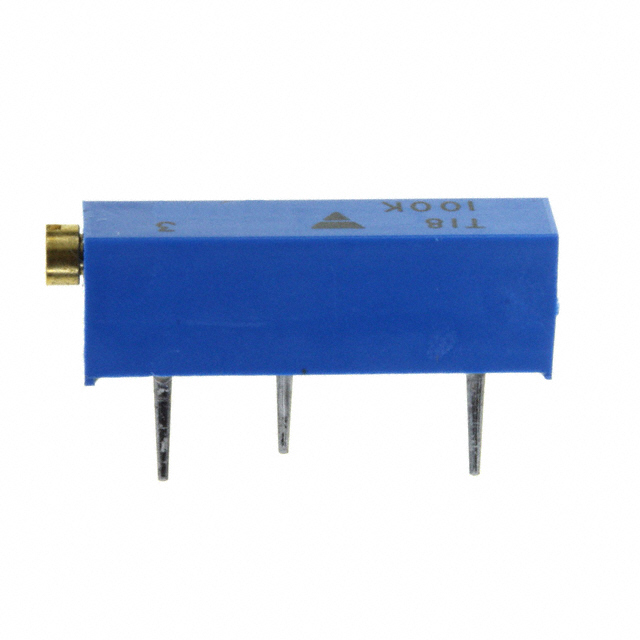

100 kOhms 0.75W, 3/4W PC Pins Through Hole Trimmer Potentiometer Cermet 15.0 Turn Side Adjustment

Technical Specifications

Parameters and characteristics for this part

SpecificationT18104KT10
Adjustment TypeSide Adjustment
Mounting TypeThrough Hole
Number of Turns15 turns
Power (Watts)750 mW
Power (Watts) Options3/4W
Resistance100 kOhm
Resistive MaterialCermet
Size / Dimension Length0.252 in
Size / Dimension ShapeRectangular
Size / Dimension Width0.189 in
Temperature Coefficient100 ppm/°C
Termination StylePC Pins
Tolerance10 %
