FAG.0B.305.CLA

Active

LEMO

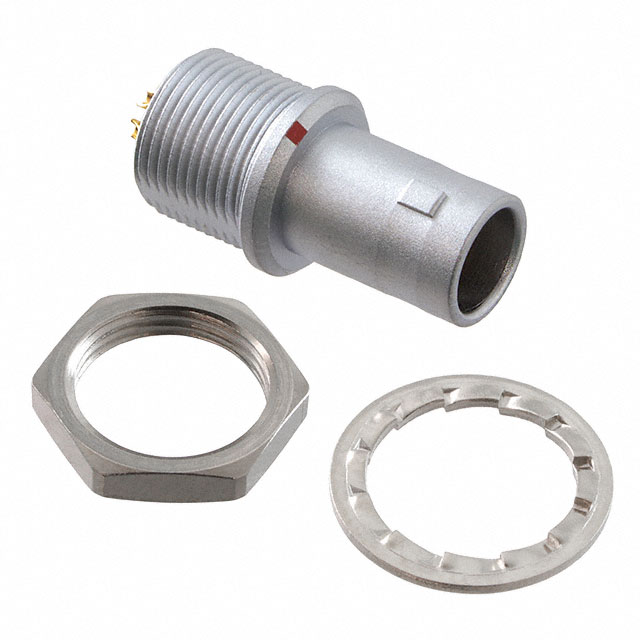

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FAG.0B.305.CLA

Active

LEMO

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FAG.0B.305.CLA	FAG.0B Series

Color	Silver	Silver, Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	6.5 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	-	2 - 9
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	302 - 309
Shielding	Shielded	Shielded
Termination	-	Crimp, Solder

FAG.0B Series

CONN PLUG MALE 4POS GOLD CRIMP

Part	Shell Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Color	Number of Positions	Fastening Type	Mounting Feature	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)	Ingress Protection	Orientation	Insert Material	Shell Size - Insert	Shielding	Shell Finish	Contact Material	Material Flammability Rating	Mounting Type
LEMO FAG.0B.304.CYC	Brass	Metal	-55 °C	250 °C	Male Pins, Plug	Silver	4	Push-Pull	Bulkhead - Rear Side Nut	Crimp	1 µm	39.4 µin	Gold	7 A	IP50	G	Polyetheretherketone (PEEK)	304	Shielded	Chrome	Brass	UL94 V-0
LEMO FAG.0B.309.CLD	Brass	Metal	-55 °C	250 °C	Male Pins, Plug	Silver	9	Push-Pull	Bulkhead - Rear Side Nut	Solder	1 µm	39.4 µin	Gold	2 A	IP50	G	Polyetheretherketone (PEEK)	309	Shielded	Chrome	Brass	UL94 V-0	Panel Mount, Through Hole
LEMO FAG.0B.309.KLA	Brass	Metal	-55 °C	250 °C	Male Pins, Plug	Black	9	Push-Pull	Bulkhead - Rear Side Nut		1 µm	39.4 µin	Gold	2 A	IP50	G	Polyetheretherketone (PEEK)	309	Shielded		Brass	UL94 V-0
LEMO FAG.0B.303.CYC	Brass	Metal	-55 °C	250 °C	Male Pins, Plug	Silver		Push-Pull	Bulkhead - Rear Side Nut	Crimp	1 µm	39.4 µin	Gold	8 A	IP50	G	Polyetheretherketone (PEEK)	303	Shielded	Chrome	Brass	UL94 V-0
LEMO FAG.0B.306.CLA	Brass	Metal	-55 °C	250 °C	Male Pins, Plug	Silver	6	Push-Pull	Bulkhead - Rear Side Nut		1 µm	39.4 µin	Gold	2.5 A	IP50	G	Polyetheretherketone (PEEK)	306	Shielded	Chrome	Brass	UL94 V-0
LEMO FAG.0B.307.CLA	Brass	Metal	-55 °C	250 °C	Male Pins, Plug	Silver	7	Push-Pull	Bulkhead - Rear Side Nut		1 µm	39.4 µin	Gold	2.5 A	IP50	G	Polyetheretherketone (PEEK)	307	Shielded	Chrome	Brass	UL94 V-0
LEMO FAG.0B.302.CLA	Brass	Metal	-55 °C	250 °C	Male Pins, Plug	Silver	2	Push-Pull	Bulkhead - Rear Side Nut		1 µm	39.4 µin	Gold	10 A	IP50	G	Polyetheretherketone (PEEK)	302	Shielded	Chrome	Brass	UL94 V-0
LEMO FAG.0B.306.CLD	Brass	Metal	-55 °C	250 °C	Male Pins, Plug	Silver	6	Push-Pull	Bulkhead - Rear Side Nut	Solder	1 µm	39.4 µin	Gold	2.5 A	IP50	G	Polyetheretherketone (PEEK)	306	Shielded	Chrome	Brass	UL94 V-0	Panel Mount, Through Hole
LEMO FAG.0B.304.CLD	Brass	Metal	-55 °C	250 °C	Male Pins, Plug	Silver	4	Push-Pull	Bulkhead - Rear Side Nut	Solder	1 µm	39.4 µin	Gold	7 A	IP50	G	Polyetheretherketone (PEEK)	304	Shielded	Chrome	Brass	UL94 V-0	Panel Mount, Through Hole
LEMO FAG.0B.309.CLA	Brass	Metal	-55 °C	250 °C	Male Pins, Plug	Silver	9	Push-Pull	Bulkhead - Rear Side Nut		1 µm	39.4 µin	Gold	2 A	IP50	G	Polyetheretherketone (PEEK)	309	Shielded	Chrome	Brass	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.49
		10	$ 24.07
		25	$ 23.03
		50	$ 22.29
		100	$ 21.54
		250	$ 20.35
		500	$ 19.76

Description

General part information

FAG.0B Series

5 Position Circular Connector Plug, Male Pins Solder Cup
