0441012
ActivePhoenix Contact

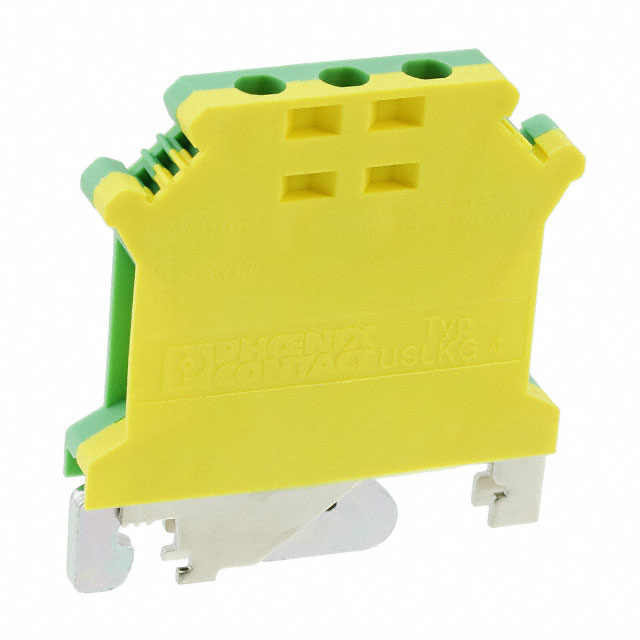

CONN TERM BLK GROUND 12-28AWG
0441012
ActivePhoenix Contact
CONN TERM BLK GROUND 12-28AWG
Description
General part information
0441012
Terminal Block Connector 2 Position Ground, Earth Green, Yellow 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 0441012 |
|---|---|
| Color | Yellow, Green |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-2 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 9 mm |
| Terminal Width | 6.2 mm |
| Termination Style | Screw |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
