Description
General part information
NF30-BEM2CR11

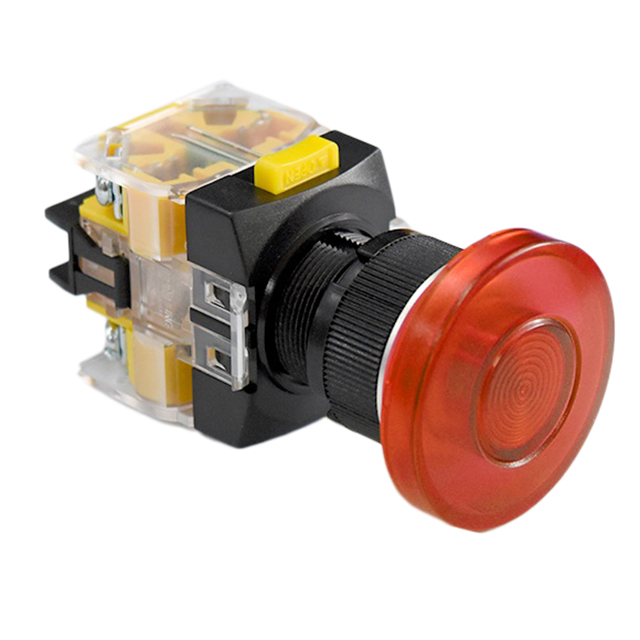

SWITCH E-STOP 6A 250V
Technical Specifications
Parameters and characteristics for this part
| Specification | NF30-BEM2CR11 |
|---|---|
| Circuit | SPST-NC, SPST-NO |
| Current Rating | 6 A, 3 A |
| Features | Illuminated (Red) |
| Illumination Voltage (Nominal) | 12 V |
| Ingress Protection | IP40 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 30.3 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
