100023196

Active

Telegartner Inc

CU-CN AMJ-S MO C6A S T568A

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN AMJ-S MO C6A S T568A

Technical Specifications

Parameters and characteristics for this part

Specification	100023196

Exterior Contact Finish	Gold
Exterior Contact Finish Thickness	0.8 µm
Exterior Contact Finish Thickness	31 µin
Exterior Contact Material	Steel
Exterior Housing Color	White
Exterior Housing Material	Zinc
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Features	Shielded
Interior Contact Finish	Tin
Interior Contact Finish Thickness	3 µm
Interior Contact Finish Thickness	118 µin
Interior Contact Material	Copper Alloy
Interior Housing Color	White
Interior Housing Material	Zinc
Interior Type (Adapter End)	Pressdown, IDC, Punchdown Block
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Ratings	Cat6a
Style	Modular

CU-CN AMJ-S MO C6A S T568A

Part	Exterior Contact Finish	Style	Exterior Type (Adapter End)	Ratings	Interior Housing Material	Interior Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Interior Contact Finish	Interior Housing Color	Exterior Contact Finish Thickness	Exterior Contact Finish Thickness	Interior Type (Adapter End)	Interior Contact Finish Thickness	Interior Contact Finish Thickness	Features	Exterior Housing Material	Exterior Contact Material	Exterior Housing Color
Telegartner Inc 100023196	Gold	Modular	Modular Jack 8p8c (RJ45, Ethernet)	Cat6a	Zinc	Copper Alloy	85 °C	-40 °C	Tin	White	0.8 µm	31 µin	IDC, Pressdown, Punchdown Block	3 µm	118 µin	Shielded	Zinc	Steel	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

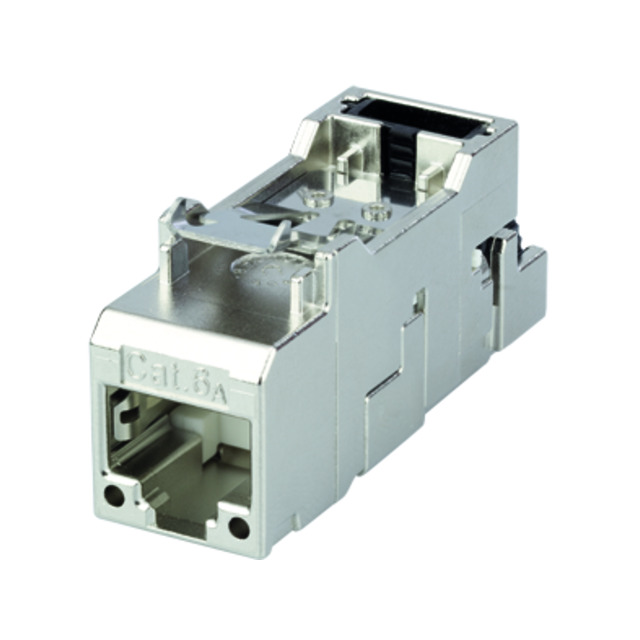

Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block White
