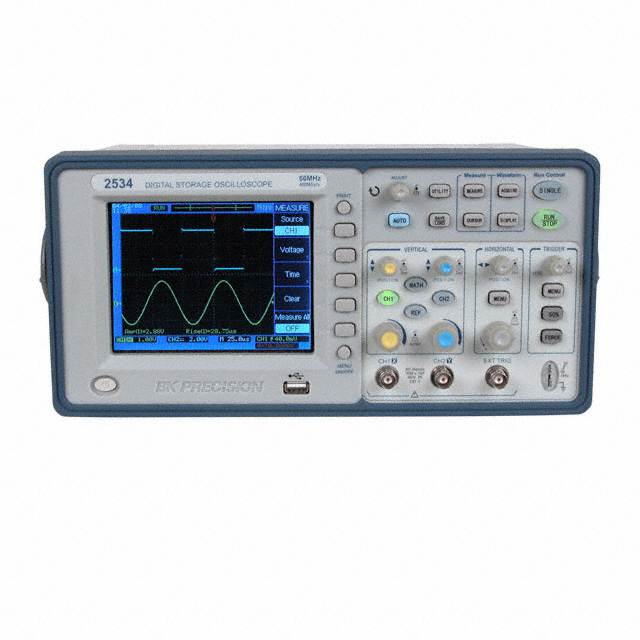

BK2534
ObsoleteB&K PRECISION
OSCOPE 60MHZ DIGITAL STORAGE
BK2534
ObsoleteB&K PRECISION
OSCOPE 60MHZ DIGITAL STORAGE
Description
General part information
BK2534
60 MHz Bench, Digital Oscilloscopes USB Interface LCD - Color Display 2 Channel CAT II 400V Record, Playback, Save, Trend
Technical Specifications
Parameters and characteristics for this part
| Specification | BK2534 |
|---|---|
| Analog Channels | 2 |
| Bandwidth | 60 MHz |
| Channel Types | Analog |
| Channels (Count) | 2 |
| Display Type | LCD - Color |
| Function | Record, Save, Trend, Playback |
| Includes | USB Cable, Software |
| Input Impedance (Capacitance) | 19 pF |
| Input Impedance (Resistance) | 1 MΩ |
| Interface | USB |
| Probe Attenuation | 10 ratio |
| Probe Count | 2 |
| Probe Type | Passive |
| Rise Time (Typ) | 5.83 ns |
| Sampling Rate (Per Second) | 400 MHz |
| Type | Digital, Bench |
| Voltage - Input (Max) (CAT II) | 400 V |
| Voltage - Input (Max) Category | CAT II |
| Voltage - Input (Max) Rating | CAT II |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
