SG-B BAG
Active3M

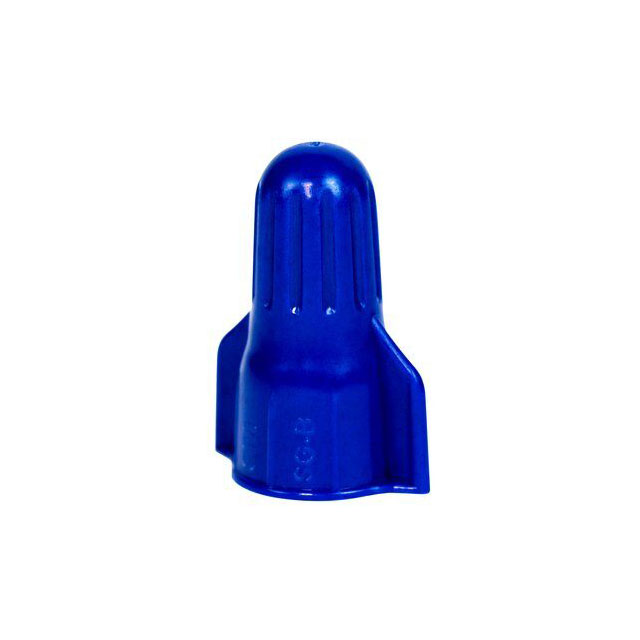

CONN WIRE CAP BLUE TWIST ON WING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SG-B BAG
Active3M
CONN WIRE CAP BLUE TWIST ON WING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SG-B BAG | SG-B Series |
|---|---|---|
| Color | Blue | Blue |
| Features | Copper Wire Only | Copper Wire Only |
| Insulation | Fully Insulated | Fully Insulated |
| Number of Wire Entries | Varies by Wire Size | Varies by Wire Size |
| Terminal Type | Twist On Wire Cap, Wing | Twist On Wire Cap, Wing |
| Termination | Twist On | Twist On |
| Wire Gauge [Max] | 14 AWG | 14 AWG |
| Wire Gauge [Min] | 6 AWG | 6 AWG |
SG-B Series
CONN WIRE CAP BLUE TWIST ON WING
| Part | Features | Termination | Color | Number of Wire Entries | Insulation | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|
3M SG-B BAG | Copper Wire Only | Twist On | Blue | Varies by Wire Size | Fully Insulated | Twist On Wire Cap, Wing | 6 AWG | 14 AWG |
Copper Wire Only | Twist On | Blue | Varies by Wire Size | Fully Insulated | Twist On Wire Cap, Wing | 6 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.88 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.59 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.54 | |||
| 2500 | $ 0.51 | |||
Description
General part information
SG-B Series
Terminal Twist On Wire Cap, Wing Connector Twist On 6-14 AWG Blue
