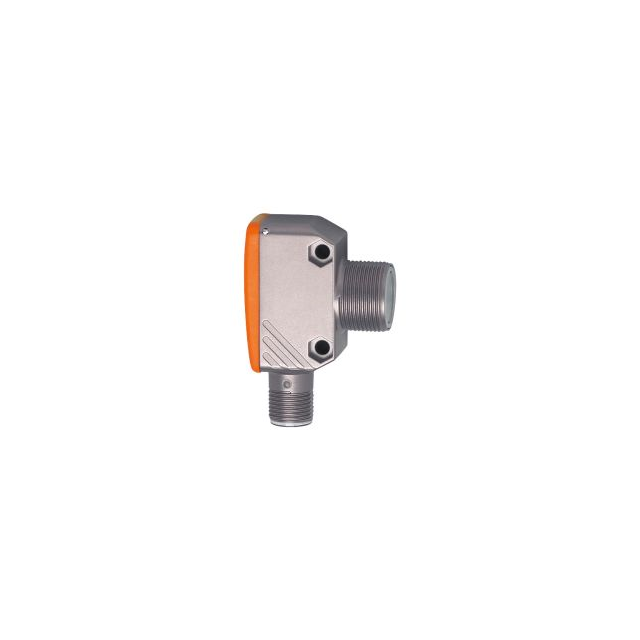

OGE280
Activeifm efector, inc.
THROUGH-BEAM SENSOR; RED LIGHT;
OGE280
Activeifm efector, inc.
THROUGH-BEAM SENSOR; RED LIGHT;
Description
General part information
OGE280
Through-Beam Optical Sensor 787.402" (20m) PNP - Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | OGE280 |
|---|---|
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 662 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNN - Dark-ON, PNP, Dark-ON |
| Sensing Distance | 787.402 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
