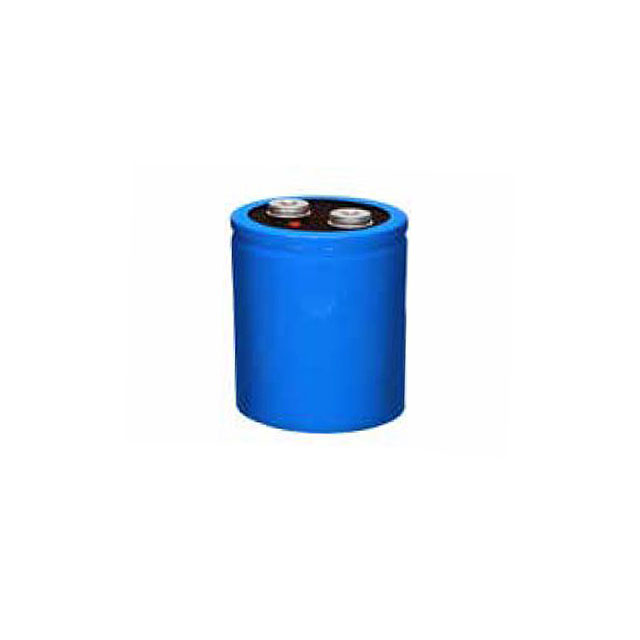

DCM742T200DF2B
ActiveCornell Dubilier Knowles
CAP ALUM 7400UF 200V SCREW CHAS
DCM742T200DF2B
ActiveCornell Dubilier Knowles
CAP ALUM 7400UF 200V SCREW CHAS
Description
General part information
DCM742T200DF2B
7400 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | DCM742T200DF2B |
|---|---|
| Applications | General Purpose |
| Capacitance | 7400 µF |
| Height - Seated (Max) | 5.687 in |
| Lead Spacing | 1.25 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Size / Dimension Diameter | 3 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 200 VDC |
