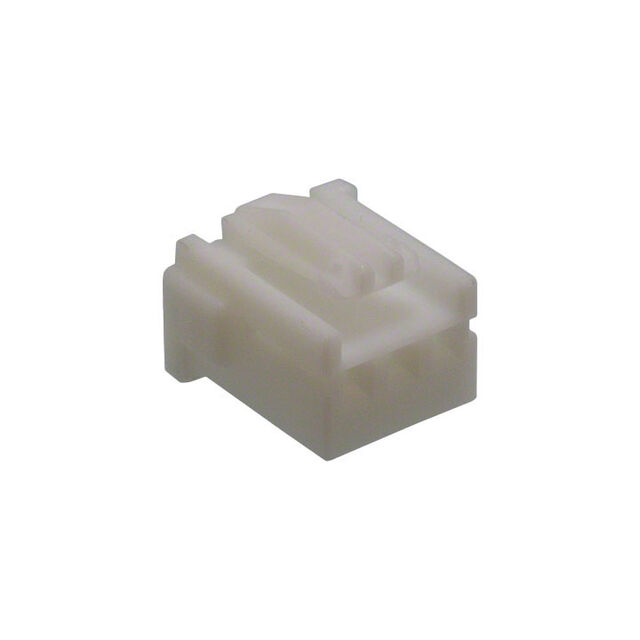

5-917687-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 3POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
5-917687-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 3POS 2.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-917687-1 | 917687 Series |
|---|---|---|
| Color | Natural | Natural, Yellow |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
917687 Series
CONN PLUG HSG 3POS 2.50MM
| Part | Connector Type | Insulation Material | Fastening Type | Contact Type | Note | Contact Termination | Color | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-917687-1 | Plug | Polyamide (PA66), Nylon 6/6 | Latch Lock | Female Socket | Contacts Not Included | Crimp | Natural | 1 | -30 ░C | 105 ░C | Free Hanging (In-Line) | 0.098 in | 2.5 mm |
TE Connectivity AMP Connectors 917687-1 | Plug | Polyamide (PA66), Nylon 6/6 | Latch Lock | Female Socket | Contacts Not Included | Crimp | Natural | 1 | -30 ░C | 105 ░C | Free Hanging (In-Line) | 0.098 in | 2.5 mm |
TE Connectivity AMP Connectors 917687-4 | Plug | Polyamide (PA66), Nylon 6/6 | Latch Lock | Female Socket | Contacts Not Included | Crimp | Yellow | 1 | -30 ░C | 105 ░C | Free Hanging (In-Line) | 0.098 in | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.29 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.21 | |||
| 100 | $ 0.20 | |||
| 400 | $ 0.18 | |||
| 800 | $ 0.17 | |||
| 1200 | $ 0.17 | |||
| 2800 | $ 0.15 | |||
Description
General part information
917687 Series
3 Rectangular Connectors - Housings Plug Natural 0.098" (2.50mm)
