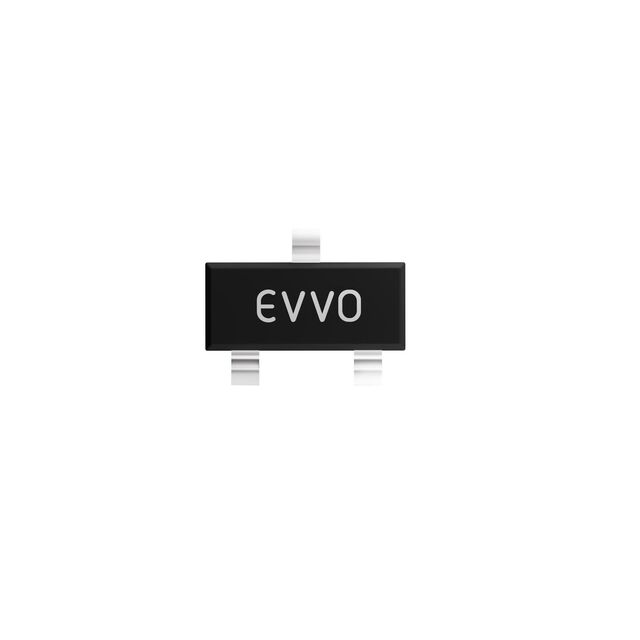

BAS40-04

Active

EVVO

SCHOTTKY DIODE 40V 0.2A SOT-23-3

Search across all available documentation for this part.

Active

EVVO

SCHOTTKY DIODE 40V 0.2A SOT-23-3

Technical Specifications

Parameters and characteristics for this part

Specification	BAS40-04

Current - Average Rectified (Io) (per Diode)	40 mA
Current - Reverse Leakage @ Vr	200 nA
Diode Configuration	1 Pair Series Connection
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Reverse Recovery Time (trr)	5 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-23
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	1 V

SCHOTTKY DIODE 40V 0.2A SOT-23-3

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction	Mounting Type	Reverse Recovery Time (trr)	Package / Case	Current - Reverse Leakage @ Vr	Technology	Speed	Speed	Diode Configuration	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Supplier Device Package
EVVO BAS40-04	1 V	125 °C	Surface Mount	5 ns	SC-59, SOT-23-3, TO-236-3	200 nA	Schottky	Any Speed	200 mA	1 Pair Series Connection	40 V	40 mA	SOT-23

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Series Connection 40 V 40mA Surface Mount TO-236-3, SC-59, SOT-23-3
