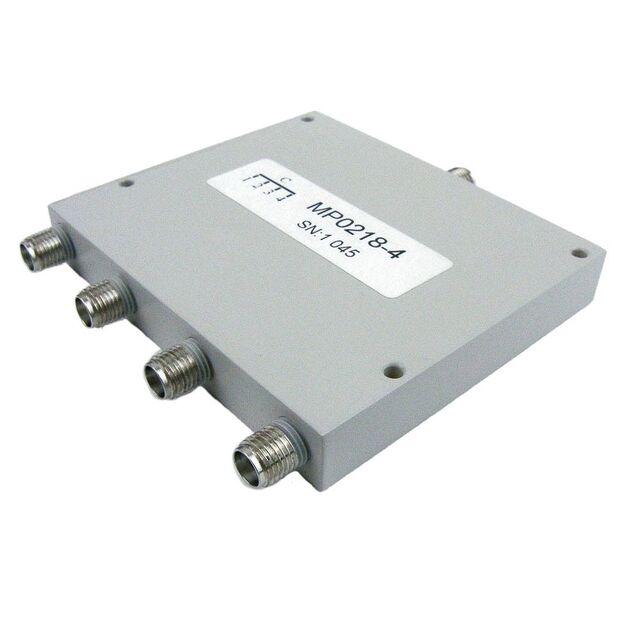

MP0218-4
ActiveFairview Microwave
POWER DIVIDER 18 GHZ SMA
MP0218-4
ActiveFairview Microwave
POWER DIVIDER 18 GHZ SMA
Description
General part information
MP0218-4
RF Power Divider 2 GHz ~ 18 GHz Isolation (Min) 16dB, 10° Imbalance (Max), 1.65 VSWR (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | MP0218-4 |
|---|---|
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 2 GHz |
| Imbalance (Max) | 10 ° |
| Insertion Loss | 8.2 dB |
| Isolation (Min) | 16 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.39 in |
| Size / Dimension Length | 2.72 in |
| Size / Dimension Width | 2.358 in |
| VSWR (Max) | 1.65 |
