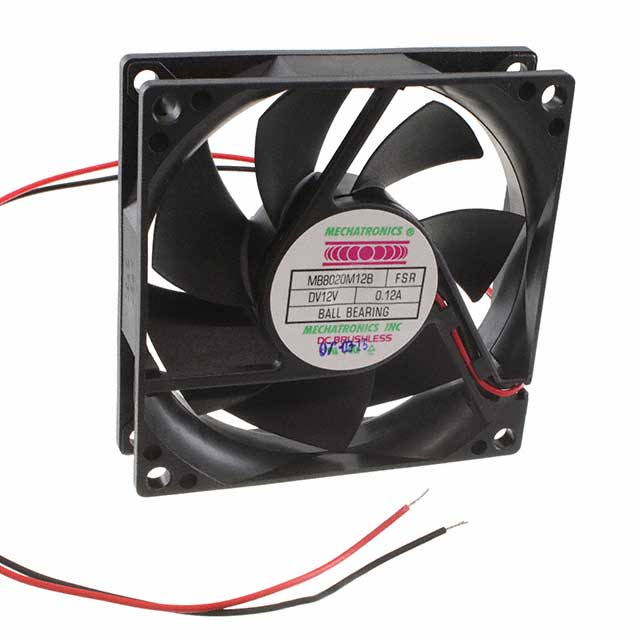

MB8020M12B-FSR
ActiveMechatronics Bearing Group
FAN AXIAL 80X20MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
MB8020M12B-FSR
ActiveMechatronics Bearing Group
FAN AXIAL 80X20MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MB8020M12B-FSR |
|---|---|
| Air Flow | 0.753 m³/min |
| Air Flow | 26.9 CFM |
| Approval Agency | UL, cUL |
| Bearing Type | Ball |
| Current Rating (Amps) | 120 mA |
| Fan Type | Tubeaxial |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 29 dB(A) |
| RPM | 2500 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 0.08 in H2O |
| Static Pressure | 19.9 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 6 VDC |
| Weight | 62.14 g |
| Weight | 0.137 lb |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.26 | |
| 10 | $ 9.80 | |||
| 25 | $ 9.21 | |||
| 50 | $ 8.86 | |||
| 100 | $ 8.16 | |||
| 250 | $ 7.64 | |||
| 500 | $ 7.52 | |||
Description
General part information
MB8020M12B-FSR
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 26.9 CFM (0.753m³/min) 2 Wire Leads
