YFF32SC1E472M
ObsoleteTDK Corporation

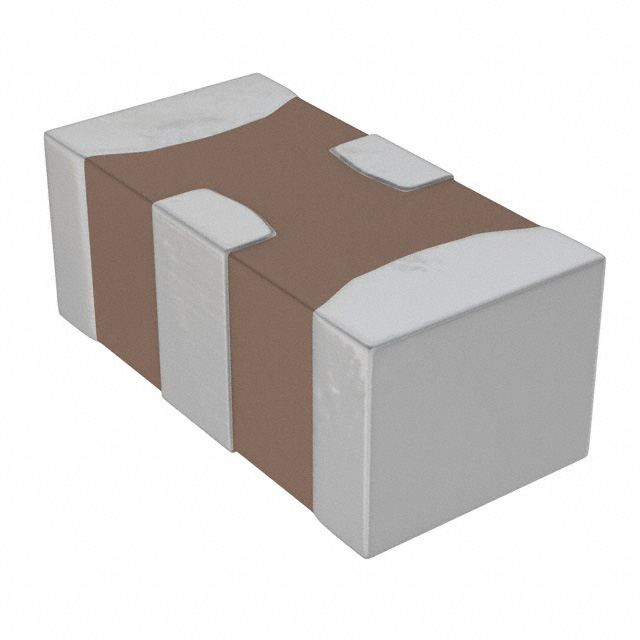

CAP FEEDTHRU 4700PF 25V 1206
YFF32SC1E472M
ObsoleteTDK Corporation
CAP FEEDTHRU 4700PF 25V 1206
Description
General part information
YFF32SC1E472M
4700 pF Feed Through Capacitor 25V 200 mA 600mOhm 1206 (3216 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | YFF32SC1E472M |
|---|---|
| Capacitance | 4700 pF |
| Current | 200 mA |
| DC Resistance (DCR) (Max) | 600 mOhm |
| Height (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | 1206 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.049 in |
| Voltage - Rated | 25 VAC |
