CHP0603AFX-1002ELF
ActiveSMD CHIP RESISTOR, 10 KOHM, ± 1%, 333.3 MW, 0603 [1608 METRIC], THICK FILM, HIGH POWER
CHP0603AFX-1002ELF
ActiveSMD CHIP RESISTOR, 10 KOHM, ± 1%, 333.3 MW, 0603 [1608 METRIC], THICK FILM, HIGH POWER
Description
General part information
CHP0603AFX-1002ELF

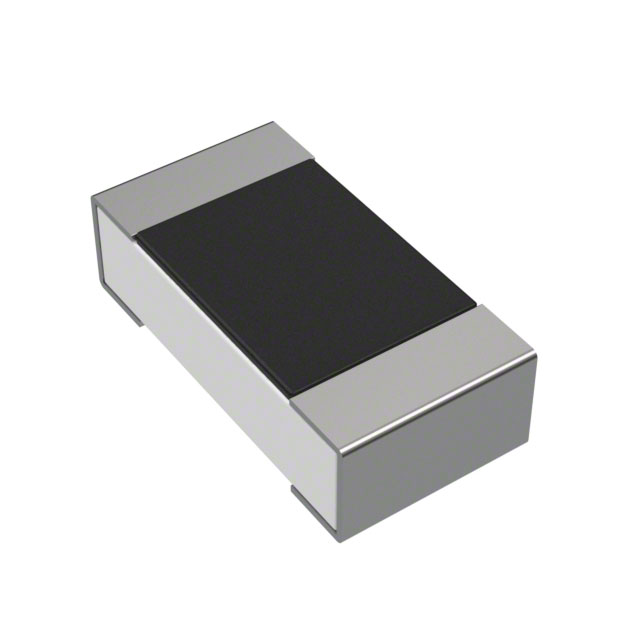

CHP-A series is a triple power sulphur-resistant AEC-Q200 compliant thick film chip resistor. Thick film chip resistor is made of a thick film resistive layer printed onto a ceramic substrate. The thick film resistive layer is a mixture of metal oxides. Surface mount chip resistors have electroplated tin (Sn) outer terminations for board soldering. The resistive element is protected by an epoxy overcoat layer. Typical applications include power supplies, digital meters, consumer electronics, LED lighting and industry control boards.
Technical Specifications
Parameters and characteristics for this part
| Specification | CHP0603AFX-1002ELF |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Anti-Sulfur, Pulse Withstanding, Moisture Resistant |
| Height - Seated (Max) | 0.022 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Power (Watts) | 0.333 W |
| Power (Watts) Options | 1/3W |
| Ratings | AEC-Q200 |
| Resistance | 10 kOhm |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
