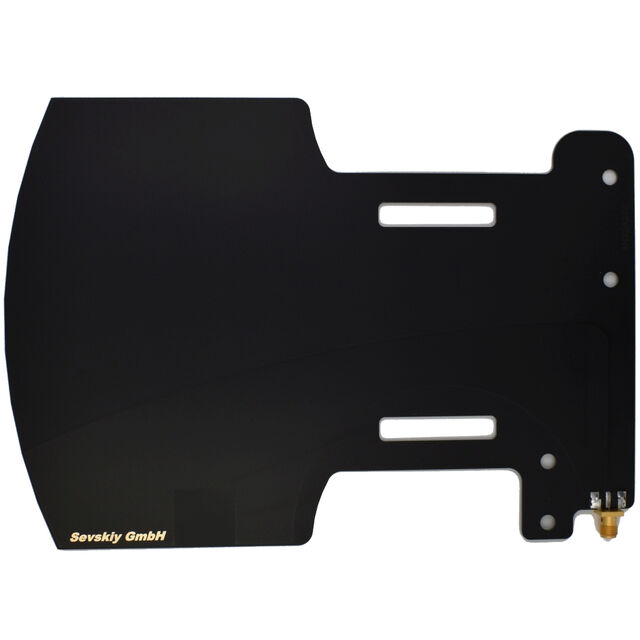

RF VIVALDI ANT 1.5-8GHZ 6-10DBI
AN220202
ActiveSevskiy GmbH
RF VIVALDI ANT 1.5-8GHZ 6-10DBI
Description
General part information
AN220202
RF ANTENNA 5G, GSM, IoT, ISM, LTE, RFID, UMTS, UWB Vivaldi SMA Female Screw Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AN220202 |
|---|---|
| Antenna Type | Vivaldi |
| Applications | UWB, 5G, LTE, RFID, UMTS, IoT, GSM, ISM |
| Frequency (Center/Band) | 5.6 GHz |
| Frequency Group | Ultra Wide Band |
| Frequency Range (Max) | 10 GHz |
| Frequency Range (Min) | 1.2 GHz |
| Gain | 10.5 dBi |
| Height (Max) | 0.039 in |
| Mounting Type | Screw Mount |
| Number of Bands | 1 |
| Power - Max | 10 VA |
| Return Loss | -10 dB |
| RF Family/Standard | UWB |
| Termination Type | SMA Female |
| VSWR | 1.93 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
