1741212
ActivePhoenix Contact
TERM BLK HEADER 6POS BLACK
1741212
ActivePhoenix Contact
TERM BLK HEADER 6POS BLACK
Description
General part information
1741212

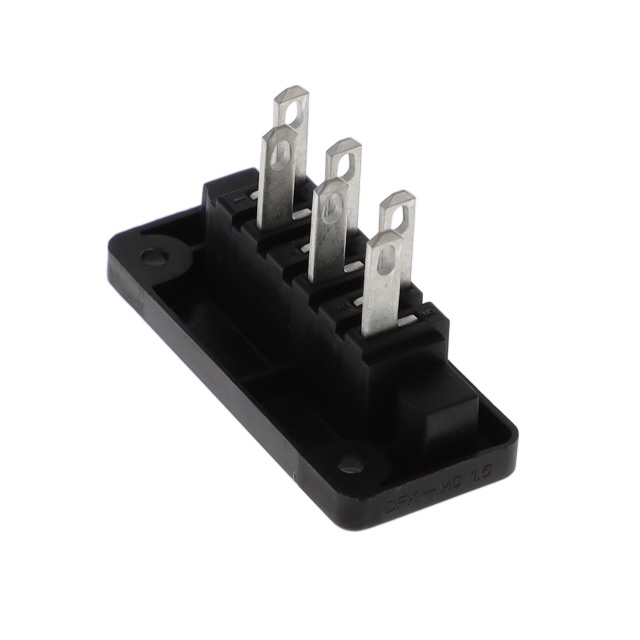

6 Position Terminal Block Header, Male Pins Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 1741212 |
|---|---|
| Color | Black |
| Current - UL | 8 A |
| Features | Threaded Mating Lock |
| Front Panel Wire Connection (Method) | Header, Male Pins |
| Number of Levels | 1 |
| Panel Mount Type | Screw Mount - Front Flange |
| Panel Thickness (Max) | 0.157 in |
| Panel Thickness (Min) | 0.02 in |
| Pitch | 0.15 in |
| Positions Per Level | 6 |
| Rear Panel Wire Connection | Quick Connect, Solder Eyelet |
| Rear Panel Wire Connection (Quick Connect) Length | 0.11 in |
| Voltage - UL | 300 V |
| Width | 1.467 in |
