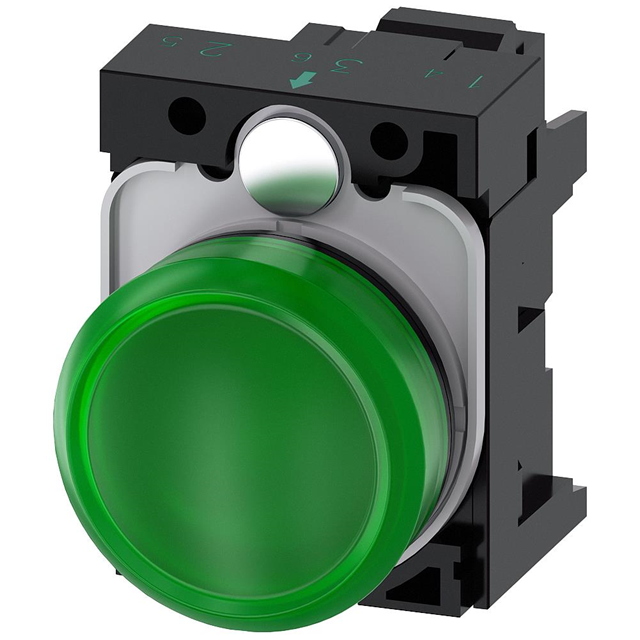

A6X30142310

Active

Siemens

INDICATOR LIGHT. GREEN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6X30142310

Active

Siemens

INDICATOR LIGHT. GREEN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 71.22
		10	$ 61.17
		100	$ 58.11

Description

General part information

A6X30142 Series

LED Panel Indicator Green Diffused 230V Spring Terminal

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6X30142310	A6X30142 Series

Ingress Protection	NEMA 2, IP69K, IP20, IP69, NEMA 3R, NEMA 13, NEMA 4, NEMA 3, IP67, NEMA 4X, NEMA 12, IP66, NEMA 1	NEMA 2, IP69K, IP20, IP69, NEMA 3R, NEMA 13, NEMA 4, NEMA 3, IP67, NEMA 4X, NEMA 12, IP66, NEMA 1
Lamp Color	Green	Clear, Green, Red, White, Amber, Yellow, Blue
Lens Color	Green	Colorless, Green, Red, White, Amber, Yellow, Blue
Lens Size [diameter]	22 mm	22 - 30 mm
Lens Transparency	Diffused	Clear, Diffused
Millicandela Rating [Max]	1800 mcd	710 - 1800 mcd
Millicandela Rating [Min]	900 mcd	280 - 900 mcd
Panel Cutout Dimensions	0.88 in	0.88 in
Panel Cutout Dimensions	22.3 mm	22.3 mm
Panel Cutout Shape	Round	Round
Ratings	AC	AC/DC, AC
Termination Style	Spring Terminal	Spring Terminal, Screw Terminal
Type	LED	LED
Voltage	230 V	24 - 230 V

A6X30142 Series

INDICATOR LIGHT. CLEAR

...

Part	Millicandela Rating [Max]	Millicandela Rating [Min]	Ratings	Panel Cutout Shape	Termination Style	Lens Transparency	Panel Cutout Dimensions	Panel Cutout Dimensions	Ingress Protection	Voltage	Type	Lens Color	Lens Size [diameter]	Lamp Color
Siemens A6X30142698	1400 mcd	900 mcd	AC/DC	Round	Spring Terminal	Clear	0.88 in	22.3 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	24 V	LED	Colorless	22 mm	Clear
Siemens A6X30142165	1800 mcd	900 mcd	AC	Round	Spring Terminal	Diffused	0.88 in	22.3 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	110 V	LED	Green	22 mm	Green
Siemens A6X30142166	1800 mcd	900 mcd	AC	Round	Spring Terminal	Diffused	0.88 in	22.3 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	110 V	LED	Green	22 mm	Green
Siemens A6X30142277	1120 mcd	450 mcd	AC	Round	Spring Terminal	Diffused	0.88 in	22.3 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	230 V	LED	Red	22 mm	Red
Siemens A6X30142188	1400 mcd	900 mcd	AC	Round	Spring Terminal	Diffused	0.88 in	22.3 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	110 V	LED	White	22 mm	White
Siemens A6X30142308	1800 mcd	900 mcd	AC	Round	Spring Terminal	Diffused	0.88 in	22.3 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	230 V	LED	Green	22 mm	Green
Siemens A6X30142120	1400 mcd	900 mcd	AC	Round	Screw Terminal	Diffused	0.88 in	22.3 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	110 V	LED	Amber	22 mm	Amber
Siemens A6X30142130	1120 mcd	450 mcd	AC	Round	Screw Terminal	Diffused	0.88 in	22.3 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	110 V	LED	Red	22 mm	Red
Siemens A6X30142154	1400 mcd	900 mcd	AC	Round	Spring Terminal	Diffused	0.88 in	22.3 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	110 V	LED	Yellow	22 mm	Yellow
Siemens A6X30142193	1400 mcd	900 mcd	AC	Round	Screw Terminal	Clear	0.88 in	22.3 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	110 V	LED	Colorless	22 mm	Clear
