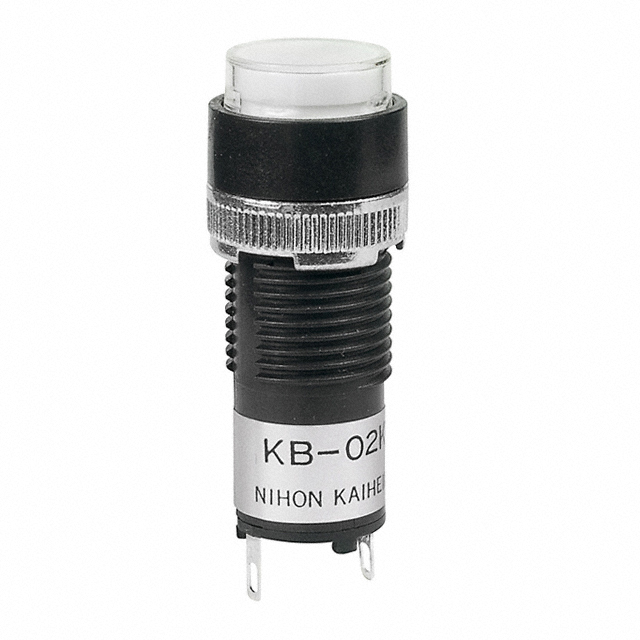

KB02KW01-6B-JB
ObsoleteNKK Switches
SW IND PB RND WHTE LED WHITE CAP
KB02KW01-6B-JB
ObsoleteNKK Switches
SW IND PB RND WHTE LED WHITE CAP
Description
General part information
KB02KW01-6B-JB
LED Panel Indicator White Clear 3.6V 30mA
Technical Specifications
Parameters and characteristics for this part
| Specification | KB02KW01-6B-JB |
|---|---|
| Current | 30 mA |
| Lamp Color | White |
| Lens Color | White |
| Lens Diameter | 11.6 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Clear |
| Panel Cutout Dimension | 0.48 " |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Type | LED |
| Voltage | 3.6 V |
