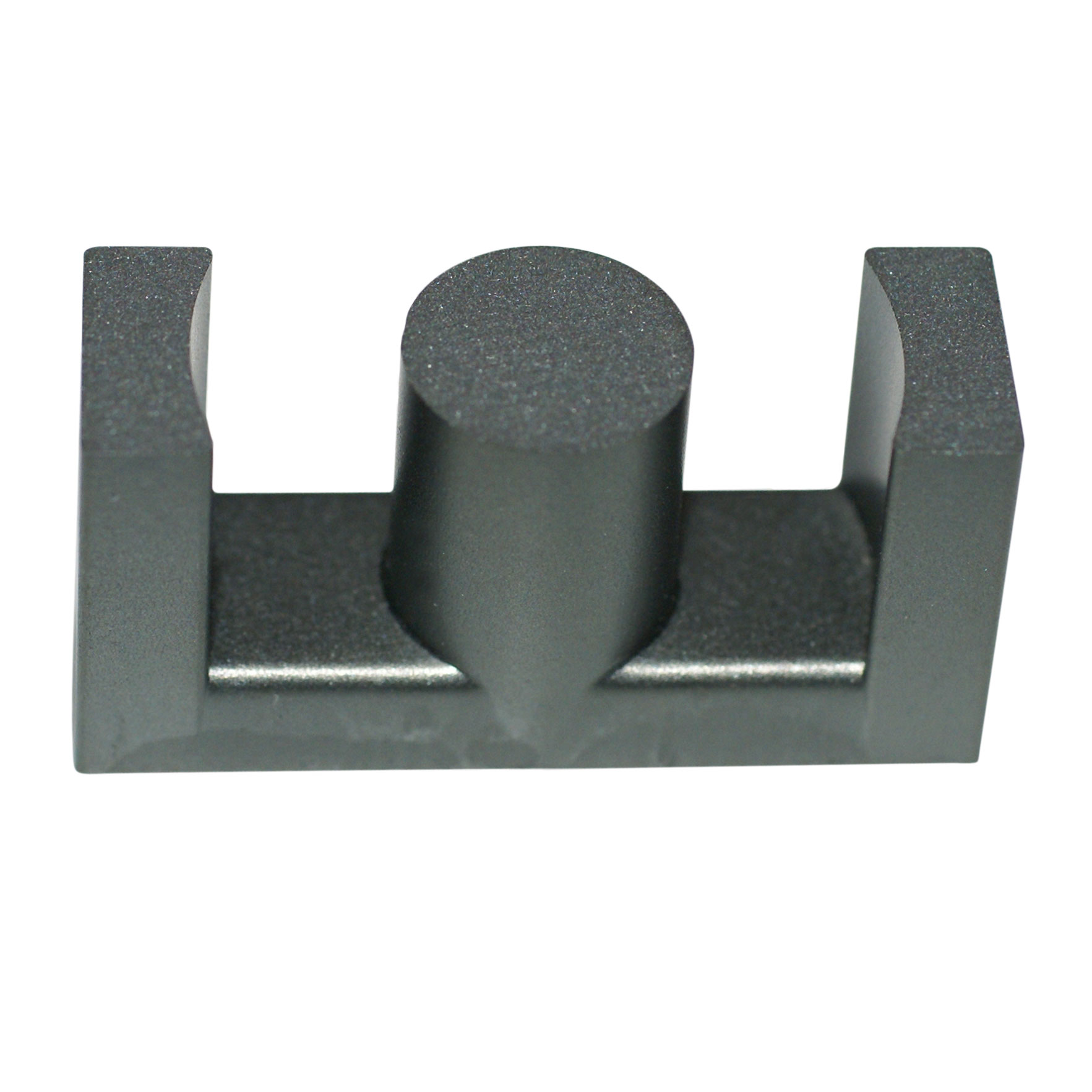

FERRITE CORE ETD 95 SET
9595606002
ActiveFair-Rite Products Corp.
FERRITE CORE ETD 95 SET
Description
General part information
9595606002
Uncoated 95 Ferrite Core ETD Type Length Width Diameter 1.181" (30.00mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 9595606002 |
|---|---|
| Core Factor (ΣI/A) | 39 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 39 mm⁻¹ |
| Core Type | ETD |
| Effective Area (Ae) | 357 mm² |
| Effective Length (le) | 138.7 mm |
| Effective Magnetic Volume (Ve) | 49520 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 1.181 in |
| Initial Permeability (µi) | 3000 |
| Material | 95 |
| Minimum Core Cross Section (Amin) (mm²) | 323 mm² |
| Tolerance | 25 % |
