202-0018-01

Active

Schmartboard, Inc.

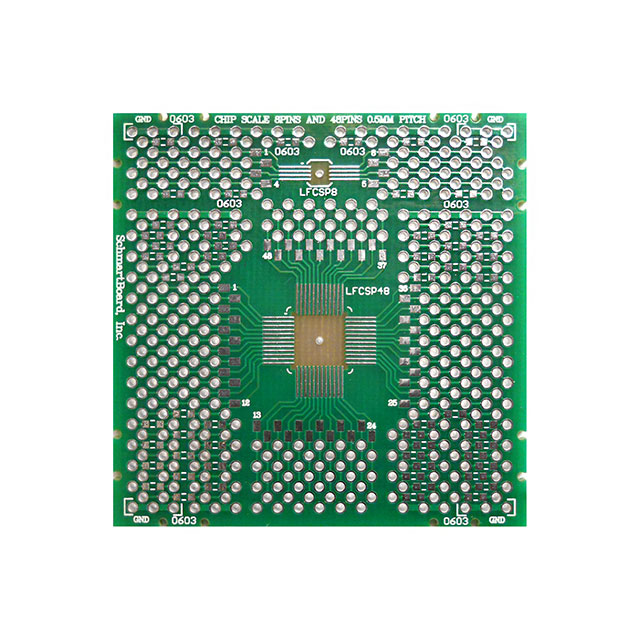

QFN SCHMARTBOARDEZ 8 AND 48 PIN

Search across all available documentation for this part.

Active

Schmartboard, Inc.

QFN SCHMARTBOARDEZ 8 AND 48 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	202-0018-01

Number of Positions	48
Package Accepted	QFN
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

QFN SCHMARTBOARDEZ 8 AND 48 PIN

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Proto Board Type	Package Accepted	Number of Positions	Pitch [x]	Pitch [x]
Schmartboard, Inc. 202-0018-01	2 in	50.8 mm	50.8 mm	2 in	SMD to Plated Through Hole Board	QFN	48	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

QFN SCHMARTBOARDEZ 8 AND 48 PIN

Technical documentation and resources
