H8MMS-2036M

Active

Assmann WSW Components

DIP CBL - HHDM20S/AE20M/HHDM20S

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CBL - HHDM20S/AE20M/HHDM20S

Technical Specifications

Parameters and characteristics commom to parts in this series

DIP CBL - HHDM20S/AE20G/HHDM20S

Part	Connector Type	Pitch - Cable	Pitch - Cable	Shielding	Pitch - Connector	Pitch - Connector	Usage	Number of Positions	Contact Finish	Cable Termination	Length [x]	Length [x]	Number of Rows	Color
Assmann WSW Components H8MMS-2036G	DIP to DIP, Reversed	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	Board In, Socket (0.1")	20	Tin	IDC	3 ft	914.4 mm	2
Assmann WSW Components H8MMS-2018G	DIP to DIP, Reversed	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	Board In, Socket (0.1")	20	Tin	IDC	1.5 ft	457.2 mm	2
Assmann WSW Components H8MMS-2036M	DIP to DIP, Reversed	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	Board In, Socket (0.1")	20	Tin	IDC	3 ft	914.4 mm	2	Multiple, Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

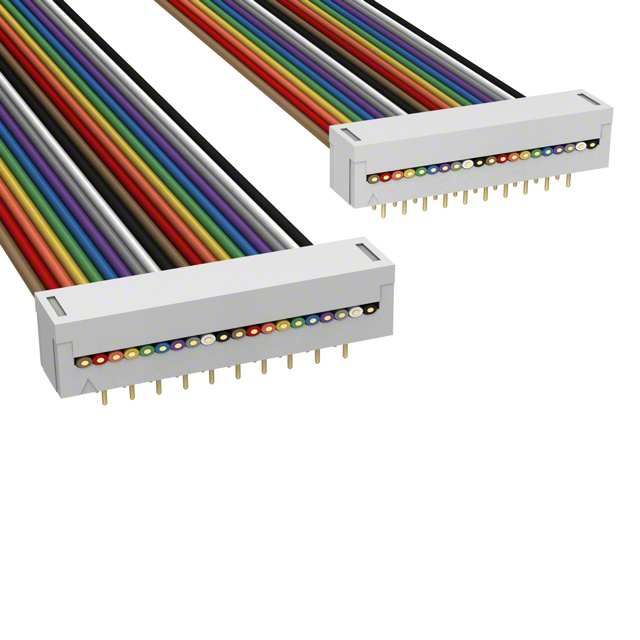

20 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
