WB0402T27NSJ
ActiveCal-Chip Electronics, Inc.
WW IND 0402 27NH 5%
WB0402T27NSJ
ActiveCal-Chip Electronics, Inc.
WW IND 0402 27NH 5%
Description
General part information
WB0402T27NSJ

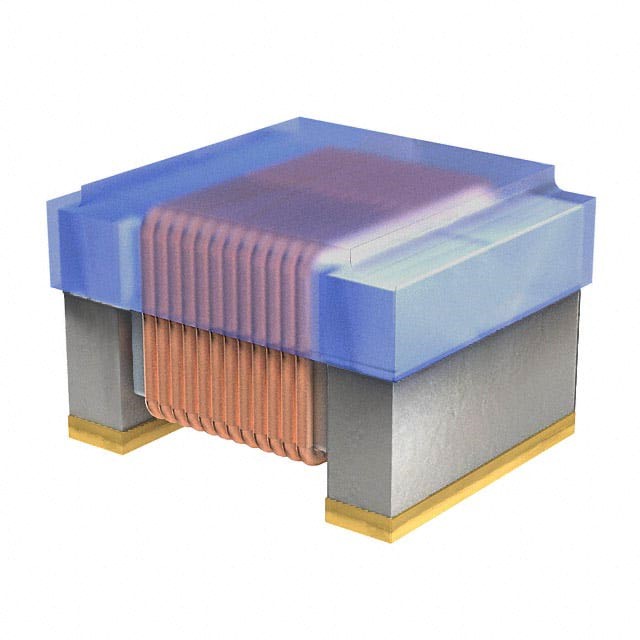

27 nH Unshielded Drum Core, Wirewound Inductor 400 mA 300mOhm Max 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | WB0402T27NSJ |
|---|---|
| Current Rating | 400 mA |
| DC Resistance (DCR) (Max) | 300 mOhm |
| Frequency - Self Resonant | 2.48 GHz |
| Height - Seated (Max) | 0.026 in |
| Inductance | 27 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 |
| Q | 24 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.047 in |
| Size / Dimension Width | 0.025 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
