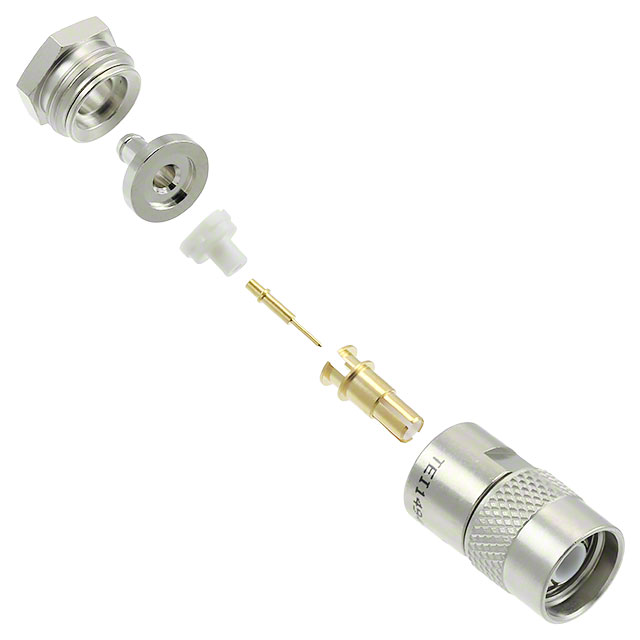

PL3155-47

Active

Cinch Connectivity Solutions Trompeter

CONN TTM PLUG STR SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TTM PLUG STR SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN TTM PLUG STR CRIMP

Part	Shield Termination	Cable Group	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Voltage Rating	Body Finish	Mounting Type	Contact Termination	Body Material	Connector Style	Includes	Mating Cycles	Impedance	Center Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color
Cinch Connectivity Solutions Trompeter PL3155AC-201	Crimp	M17/176-00002	Gold	500 MHz	1	400 V	Nickel	Free Hanging (In-Line)	Crimp	Brass	TTM, Twinaxial/Triaxial	1 Heat Shrink, 2 pcs - 1 Connector	500	Non-Constant	Beryllium Copper	Plug, Male Pin (Concentric)	-65 ░C	200 °C	Silver
Cinch Connectivity Solutions Trompeter PL3155ACS-201	Crimp	M17/176-00002	Gold	500 MHz	1	400 V	Nickel	Free Hanging (In-Line)	Crimp	Brass	TTM, Twinaxial/Triaxial	1 Heat Shrink, 2 pcs - 1 Connector	500	Non-Constant	Beryllium Copper	Plug, Male Pin (Concentric)	-65 ░C	200 °C	Silver
Cinch Connectivity Solutions Trompeter PL3155-47	Wrench Clamp	M17/176-00002	Gold	500 MHz	1	400 V	Nickel	Free Hanging (In-Line)	Solder	Brass	TTM, Twinaxial/Triaxial		500	Non-Constant	Beryllium Copper	Plug, Male Pin (Concentric)	-65 ░C	200 °C	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TTM, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
