8214 010100

Active

Belden Inc.

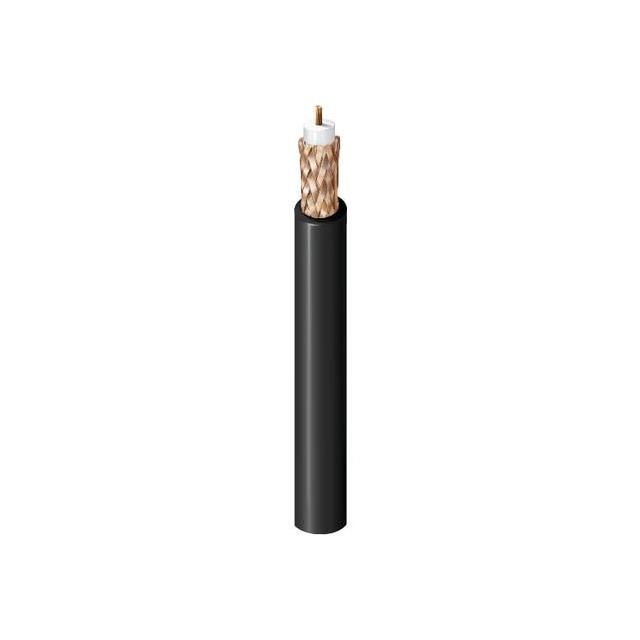

CABLE COAXIAL RG-8 11AWG 100'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAXIAL RG-8 11AWG 100'

Technical Specifications

Parameters and characteristics for this part

Specification	8214 010100

Cable Group	RG-8
Cable Type	Coaxial
Conductor Material	Copper, Bare
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Jacket (Insulation) Diameter [diameter]	10.24 mm
Jacket (Insulation) Diameter [diameter]	0.403 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	100 ft
Length [x]	30.48 m
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	RF Signal
VoP, Velocity of Propagation	78
Wire Gauge	11 AWG

Part	Shield Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Wire Gauge	Conductor Material	VoP, Velocity of Propagation	Cable Group	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Cable Type	Jacket Color	Jacket (Insulation) Material
Belden Inc. 8214 010100	Braid	7.24 mm	0.285 in	100 ft	30.48 m	-40 °C	80 C	Copper Bare	11 AWG	Copper Bare	78	RG-8	95 %	10.24 mm	0.403 in	RF Signal	Coaxial	Black	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 5.03

General part information

Coaxial Cable 11 AWG RG-8 100.0' (30.48m)
