JACK-USBE-20PINTL
ActiveGlobTek, Inc.

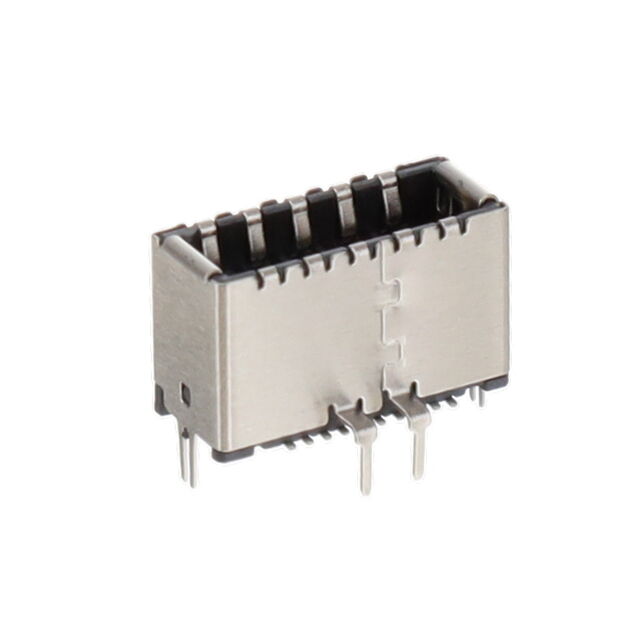

USB KEY A 20-PIN INTERNAL JACK
JACK-USBE-20PINTL
ActiveGlobTek, Inc.
USB KEY A 20-PIN INTERNAL JACK
Description
General part information
JACK-USBE-20PINTL
USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 20 Position Surface Mount, Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | JACK-USBE-20PINTL |
|---|---|
| Current Rating | 3 A |
| Gender | Receptacle |
| Mating Cycles | 50 cycles |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 20 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Shielding | Shielded |
| Specifications | Superspeed + (USB 3.1), USB 3.2 Gen 2 (USB 3.1 Gen 2 |
| Termination | Solder |
| Voltage - Rated | 100 VAC/DC |
